video corpo

digital ohmmeter / portable
DLRO10X

Add to MyDirectIndustry favorites
Compare this product
digital ohmmeter / portable digital ohmmeter / portable - DLRO10X
{{requestButtons}}

Characteristics

  • Display:

    digital

  • Portability:

    portable

  • Resistance range:

    Min.: 0 Ohm

    Max.: 2,000 Ohm

Description

Accurate results in under three seconds
Auto current reversal cancels standing emfs
Fuse protected to 600 V
NiMH battery reduces weight
250 mW power limit (with optional override) to avoid heating the test sample
Automatically detects continuity in potential and current connections
Visible warning of high voltages present at the terminals
Visible warning of current flowing in the test sample
Multiple operating modes including fully automatic
Alpha-numeric keypad for entering test notes
User setable high and low limits
Autoranging with Manual option
Printer output and memory

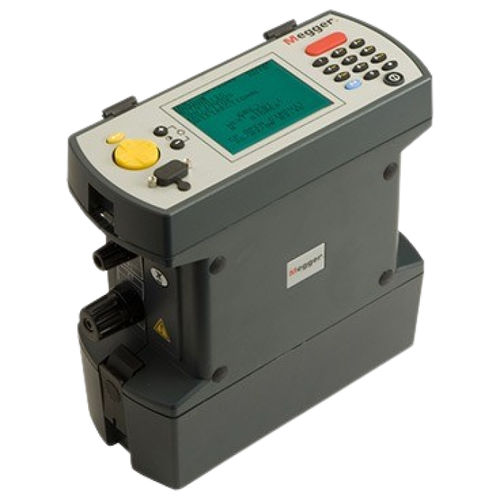

The MEGGER DUCTER DLRO10 and DUCTER DLRO10X bring new standards to low resistance measurement. Both are fully automatic instruments, selecting the most suitable test current, up to 10 A dc to measure resistance from 0.1 µΩ to 2000 Ω on one of seven ranges. For users who desire more control over the measurement process, DLRO 10X uses a menu system controlled by a two-axis paddle to allow manual selection of the test current. DLRO10X also adds real-time download of results and on-board storage for later download to a PC.

Both instruments are built into a strong, lightweight case that is equally at home in the field or in the laboratory. Light enough to be worn around the neck, they are small enough to be taken into areas which were previously too small to access. DLRO 10 uses a large, bright 4-1/2-digit LED display while DLRO 10X has a large, backlit LCD display.
