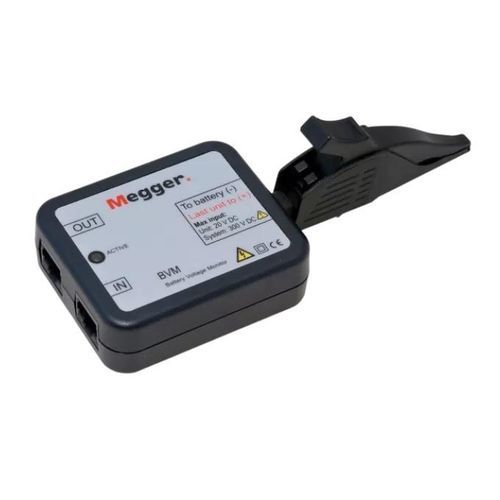

Voltage battery monitor BVM

About the product

• Automates battery voltage measurement during capacity tests
• Daisy‑chain design allows expansion up to 2x120 cells
• High measurement accuracy and stability for precise data collection
• Integrates with TORKEL Win and PowerDB test data management software
• Wide voltage range
• Easy set‑up with multiple options to connect the BVM system to a battery bank

Overview
Megger BVM is a battery voltage monitor used for capacity testing of large industrial battery banks typically found in electrical substations, telecom facilities and data centre UPS systems. Used with a load device (for example a TORKEL unit) and test data management software such as PowerDB and TORKEL Win, the BVM enables fully automated battery bank capacity testing according to the IEC test method and supports compliance with NERC/FERC requirements.

The BVM is modular: one BVM unit is used for each battery or cell in the string to be tested. Units connect in a daisy‑chain (up to 2x120 units), providing economical expandability for small to large battery bank systems. All units are identical and interchangeable; the BVM Auto Discovery feature allows the host device to automatically determine the number of batteries under test and assign sequential identification to each unit in the test string.

Product documents (available)
Data sheet, user guides, calibration guide and application notes are available as product documents.

Technical specifications

• Function: Battery voltage monitoring for capacity testing
• Expandability: Daisy‑chain up to 2x120 units
• Data storage and communication: USB
• Power source: Power over Ethernet (PoE)
• Integration: Compatible with TORKEL Win and PowerDB test data management software
• Auto Discovery: Host device automatically detects and identifies BVM units in the string
• Applications: Industrial battery banks in substations, telecom facilities and data centre UPS systems
• Compliance: Enables testing according to IEC capacity test method and supports NERC/FERC requirements
