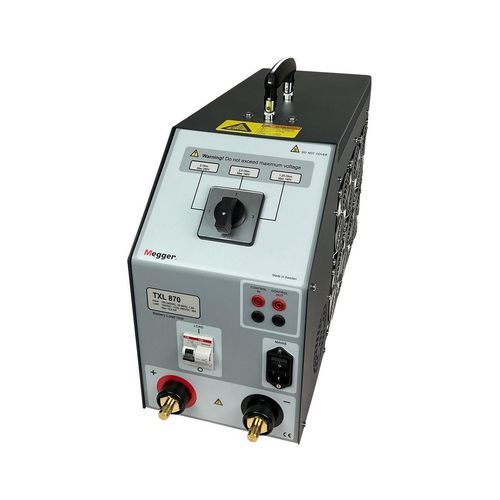

DC electronic load TXL series

Overview
The TXL series are additional load units designed for use with TORKEL battery test systems to provide higher discharge currents for constant-current or constant-power tests. These mains-powered units connect directly to the battery under test and, when combined with a TORKEL unit, can discharge batteries with currents up to several kA. The TORKEL unit controls the discharge and the total current is measured with a clamp-on ammeter.

Key features

• Increase available load current for concurrent power or current tests
• Discharge process controlled by a TORKEL unit
• Direct connection to the battery under test
• Multiple models available to match testing requirements
• Mains-powered units compatible with TORKEL series

Models available

• TXL830
• TXL850
• TXL865
• TXL870
• TXL890

Product documents

• Data sheet: TORKEL900_DS_en.pdf
• User guide: TORKEL900-series_UG_en.pdf

Technical specifications

• Power source: Mains
• Designed for constant-current or constant-power battery tests
• Used with TORKEL units to achieve discharge currents up to several kA
• Total current measurement using a clamp-on ammeter (when used with TORKEL)
• Five model variants: TXL830, TXL850, TXL865, TXL870, TXL890
