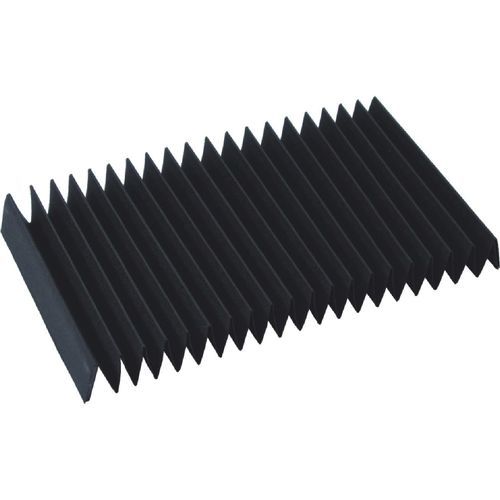

Flat protective bellows

leatherPVCrubber

Flat type bellows way covers is a mechanical protective component specifically designed for linear motion equipment. It primarily protects machine tool slides, guide rails, and transmission structures, effectively preventing dust, cutting chips, oil mist, or liquids from entering during operation. This helps maintain the accuracy of the equipment's movement and extends its overall service life. When is it appropriate to use flat type bellows way covers In practical engineering applications, Flat type bellows way covers is particularly suitable for the following conditions: 1. The installation space is long and narrow, with a relatively simple structure. 2. Protection requirements are mainly for dust, oil mist, or light cutting chips. 3. The equipment speed and stroke are in the low to medium range. 4. It is desirable to balance effective protection with ease of maintenance and replacement. If the equipment stroke is long, the movement speed is high, or the amount of cutting chips is large, it is usually recommended to further evaluate other structural protection solutions to ensure service life and stability. Design specifications of Flat type bellows way covers structure and materials The design of Flat type bellows way covers can be adjusted according to actual equipment requirements. Common components include: ● Dust cover body: Rubber/plastic base material or coated fabric ● Front and rear mounting flanges: Metal sheet metal (e.g., steel, stainless steel) ● Internal support structure (optional): Rollers, steel scissor clamps, support plates, or travel limiting structures the choice is based on the equipment's operating environment and conditions.
