Coolant tube

plasticprocesscorrosion-resistant

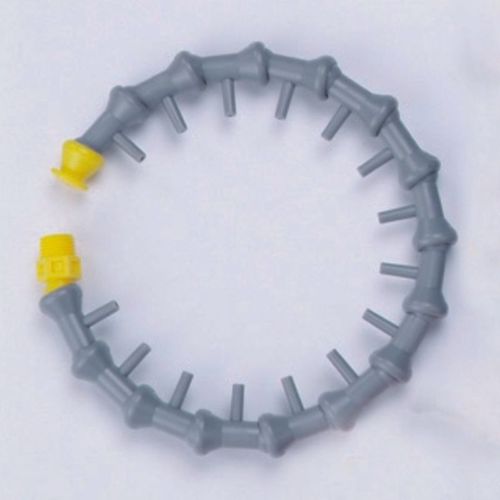

The surround type machine coolant tube is a cooling jet device specifically designed for multi-directional cooling of metal cutting tools. It is primarily used in traditional milling machines, drilling machines, CNC lathes, and CNC milling machines. Its key feature is its annular water outlet structure, which allows for simultaneous cooling of the tool and machining area from multiple directions, effectively improving the uneven cooling problem caused by single-point spraying. During metal cutting, the surround type machine coolant tube can quickly remove cutting heat, stabilize tool temperature, thereby extending tool life, improving machining quality, and reducing the risk of tool wear. When is it appropriate to use a surround type machine coolant tube? In actual machining environments, surround type machine coolant tubes are particularly suitable for the following applications: 1. Tools require 360° uniform cooling 2. High-speed or continuous machining with concentrated cutting heat 3. A single nozzle cannot fully cover the machining area 4. Improving tool life and machining stability is desired 5. Balancing cooling and chip removal effects is necessary. Compared to unidirectional coolant tubes, surround type machine coolant tubes offer significant advantages in cooling uniformity and heat dissipation efficiency. Structural and Material Design Specifications The surround type coolant tubes adopt a modular structure and chemical-resistant materials. Its main characteristics are as follows: 1. Coolant Tube Body Material: 1-1. Acid and alkali resistant engineering plastic
