WiFi wireless module SRM900

data transmission

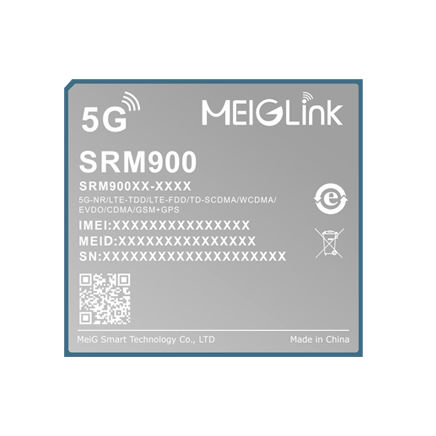

MeiG Smart SRM900 series core board adopts SM6350 of Qualcomm Snapdragon 5G series. Its CPU adopts 8nm FinFET with 64bit ARM V8 core, Kyro CPU 560 (2 * A77 2.0 GHz&6 * A551.7 GHz) with Adreno GPU 619 and V66A 1.2GHz+Dual HVX, and can carry higher AI calculation algorithm, supporting up to 4K 30fps decode/encode and H.265. It carries android 11 system, supports 64GB+6GB(128GB+8GB) board memory, 5G NR sub-6Ghz, DL 4x4 MIMO, UL 2x2 MIMO, NSA and SA, integrates L1+L5 GPS, 2x2 MIMO and ax ready WIFI broadband smart cellular modules. SRM900 integrates rich functional interfaces, including LCM, touch screen, camera, microphone, speaker, UART, USB, I2C, SPI interface, etc. It can provide Voice, SMS, address book, 2x2 MIMO WiFi, BT and GPS functions. This product supports dual 16 million 3D camera and DOF camera, and can be widely applied to POS cash registers, logistics terminals, VR camera, intelligent robots, automobile equipment, intelligent information acquisition equipment, intelligent handheld terminals and other products of 5G network. Main Advantages： ● Support 5G NR sub-6Ghz，DL 4 × 4 MIMO SA/NSA mode and UL 2 × 2 MIMO SA mode ● Support 2x2 MU MIMO Wi-Fi, ax ready ● AI support V66A 16/16/512KB 1.2GHz+Dual HVX ● Support dual-screen display and dual-touch control; main screen supports up to 2520*1080 @60fps; auxiliary screen supports QHD @60fps Display-Port ● Support 3-way camera, up to 4-way camera ● GPS L1+L5 dual-frequency positioning, to meet the fast and accurate positioning in different environments ● Support 4K @30fps video recording and playback
