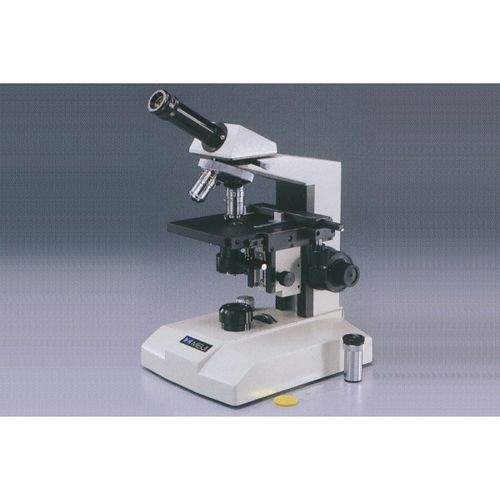

Optical microscope ML6500 Series

for analysisuprightbright field

PCM (Phase Contrast) Microscopes for Asbestos fiber counting applications. Meiji manufactures these microscopes pursuant to NIOSH 7400 and OSHA ID 160 Reference methods. Built in Koehler illuminator with 6V 30W Halogen lamp and variable intensity control. Equipped with Phase contrast objectives, GIF filter, Walton & Beckett reticle and a centering telescope. The ML6500 Series features include: Transmitted light binocular / Trinocular microscope with DIN standard eyepieces HWF 10X and DIN HWF 10X-F focusing eyepieces with Walton & Beckett reticle (Type G-22 with 3:1 aspect ratio), Trinocular head with beam-splitter Quadruple nosepiece with SM Plan DIN brightfield objective 10X, and BF S. Plan Achromat Positive Phase contrast objective 40XS/ N.A. 0.65 Mechanical X-Y stage with attached finger assembly Achromatic condenser N.A. 1.25 with iris, filter tray and 40X positive Phase annulus in sliding mount. Coaxial coarse and fine focus adjustment with graduation, reading 2 microns per division with tension adjustment and safety auto focus stop. Built-in Koehler illuminator with 6V 30W halogen lamp & variable intensity control GIF ( Green interference Filter) 546nm, 29.8 diameter. Centering Telescope Stage micrometer 1mm divided into 100 units (each division= 0.01 mm) Supplied with dust cover and operation manual
