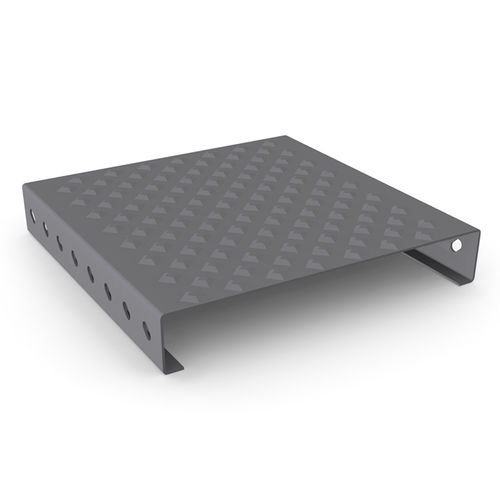

Galvanised steel grating Toldiamant G

aluminumstainless steelsheet metal

Product information
The closed surface profile planking provides an opaque floor covering between levels. Objects and liquids cannot fall or drip through the plank while safe standing is ensured. Typical applications include architectural projects, interior flooring and façade cladding.

Technical data
Material | Sheet thickness (mm) | Anti-slip class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R10
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R10
Aluminium [AIMg3] | 2.5 / 3.0 | R10
Stainless steel [1.4301] | 2.0 | R10
Preferred widths | 180 / 240 / 300 mm
Preferred heights | 30 / 50 / 75 / 100 mm (other heights on request)
Lengths | max. 3,996 mm
Length divider | 36 mm
Special sizes or materials on request. All data in mm. * Produced in France.

Accessories / Fixing clips

• BPR Screw connection: M8 x 20 special bolt with washers and self-locking nuts.
• BPR Universal clamp: Cast metal clamp for assembling from below, available in various versions.

Characteristics / technical specifications

• Product: Toldiamant G
• Type: closed-surface profiled planking providing screening and preventing falling/dripping through
• Applications: architectural projects, interior flooring, façade cladding
• Materials available: DD11, DX51, AIMg3, stainless steel 1.4301
• Sheet thickness options (mm): 2.0 / 2.5 / 3.0 (material-dependent; stainless steel 2.0 mm; aluminium 2.5 / 3.0 mm)
• Anti-slip class: R10
• Preferred widths (mm): 180, 240, 300
• Preferred heights (mm): 30, 50, 75, 100 (other heights on request)
• Maximum length: 3,996 mm
• Length divider: 36 mm
• Special sizes or materials available on request
• All dimensions in mm
• Produced in France
