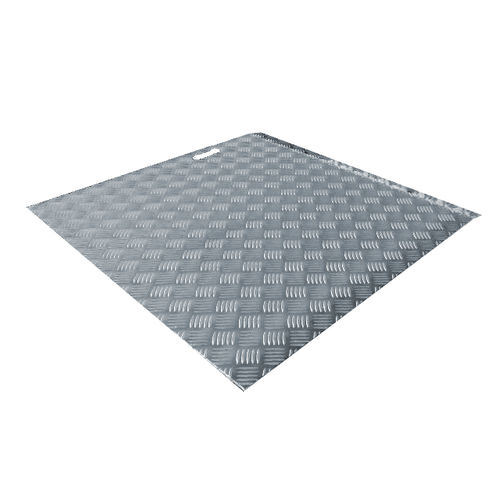

Aluminum access gangway

Product information

Characteristics

• Spout (overhang) of 60 mm (in addition to usable length)
• Material: natural aluminium with chequered pattern, EN 5754 AlMg3 H114
• Handle for handling
• Color: natural

Use

• Threshold crossing

Installation

• Directly on the floor

Technical data
Using length (mm) — 740
Width (mm) — 800
Mass (kg/p) — 10
Thickness (mm) — 5
Maximum load (kg) — 300
Crossing height (cm) — 10 to 15

Characteristics / technical specifications

• Using length: 740 mm
• Width: 800 mm
• Mass: 10 kg per piece
• Thickness: 5 mm
• Maximum load: 300 kg
• Crossing height: 10 to 15 cm
• Material: EN 5754 AlMg3 H114 natural aluminium with chequered pattern
• Spout: 60 mm (in addition to usable length)
• Color: natural
• Installation: directly on the floor
