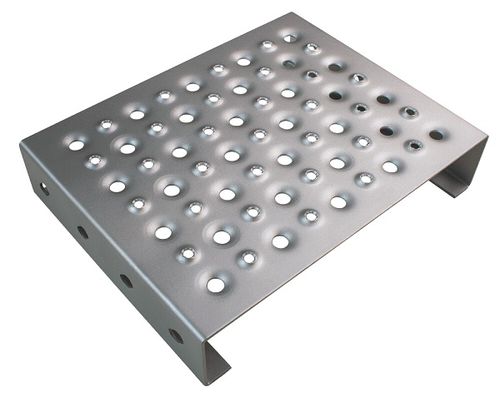

Galvanised steel grating Stepplus O2

aluminumsheet metal

Product overview
This plank combines a smooth, light‑transmitting surface with high transverse stiffness. It is intended for applications where anti‑slip properties are not required, for example as shelving panels in storage and racking systems.

Technical data
Material | Sheet thickness | Slip rating
Raw / hot‑dip galvanised steel [DD11] | 2.0 / 2.5 | -
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 | -
Aluminium [AIMg3] | - | -
Stainless steel [1.4301] | 2.0 | -
Preferred widths | 125 / 200 / 250 / 300 mm
Preferred heights | 40 / 50 / 75 / 100 mm (other heights on request)
Lengths | max. 6,000 mm
Length divider | 50 mm
Special sizes and materials available on request. All dimensions in mm.

Accessories / Fixing clips

• BPR Flange: Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Counterplate: Upper component for all Stepplus versions.
• BPR Rondelle T03: Cast upper part for Stepbloc and Drainstep forms with countersunk hole for countersunk screws (DIN 7991).
• BPR Fast fixing: Clamp connection with M8 countersunk head bolt.
• BPR Setztechnik (closed surfaces): Includes a bore of ∅ 13 mm in the profile.
• BPR Universal clamp: Cast metal clamp for assembly from below, available in several versions.

Applications & References

• Transformer housing, Dresden
• Carl Spaeter

Technical specifications

• Model: Stepplus O2
• Brand: MEISER
• Surface: smooth, light‑transmitting
• Main use: shelving panels and applications where anti‑slip is not required
• Transverse stiffness: designed for high transverse stiffness
• Materials available: Raw / hot‑dip galvanised steel (DD11), Sendzimir galvanised steel (DX51), Aluminium (AIMg3), Stainless steel (1.4301)
• Sheet thicknesses: 2.0 / 2.5 mm (depending on material); stainless steel 2.0 mm
• Preferred widths (mm): 125 / 200 / 250 / 300
• Preferred heights (mm): 40 / 50 / 75 / 100 (other heights on request)
• Maximum length: 6,000 mm
• Length divider: 50 mm
• All dimensions in mm; special sizes and materials on request
