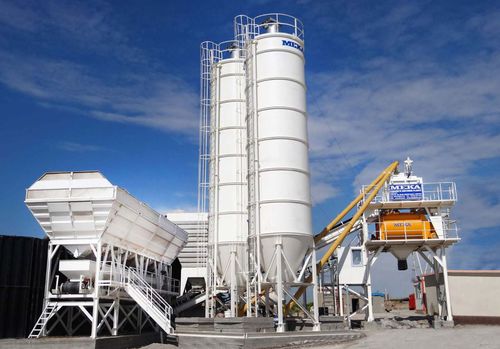

Cone-bottom silo

weldedtelescopiccement

MEKA offers a wide range of storage silos for powder products like Cement, Lime, Fly Ash, Microsilica, Bentonite and others. The capacities vary from 50 to 500 tons (calculating at 1,25t/m³). Two discharge cones are available as an option. WELDED TYPE SILOS (SINGLE PIECE) Welded silos are the best choice for short distance transportation and require minimum installation time. Being shipped as a single piece all that needs to be done is lift the silo and put it on the foundation. Another advantage of welded silos is their leakproof structure. It provides 0 water permeability. WELDED SILO CAPACITIES 50-75-100-120 tons BOLTED TYPE CEMENT SILOS Bolted silos are the best choice for long distance transportation as 2 silos with 2 sets of screw conveyors, filters and other equipment can be fit in one 40FT open top container. While offering great transportation advantages bolted silos require more time for installation. Correct water sealing must be applied. Silo can be shipped on short distances after being put together. BOLTED SILO CAPACITIES 50-75-100-120-150-200-250-300-500 tons TELESCOPIC TYPE SILOS (50 ton only) Telescopic type silos are designed for both long distance transportation and fast installation. The silo consists of only 3 parts that fit one in another in transport position. It allows to fit 2 silos with 2 sets of screw conveyors, filters and other equipment in one 40FT open top container while significantly reducing the installation time.
