Air circulation heating oven in accordance with EN50242/EN60436: 2013-08.

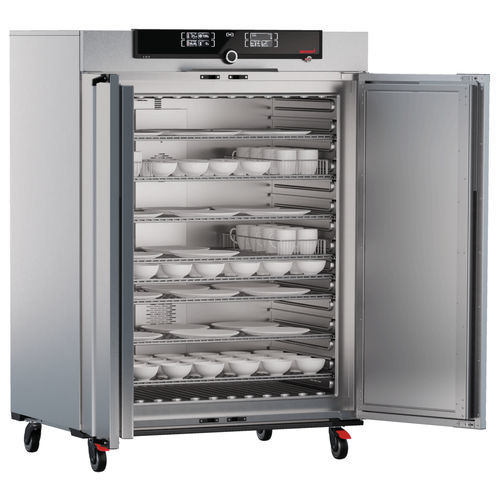

The Memmert heating oven dishwasher UFP800DW is specially adapted to the EN50242 standard and complies with the standard's specifications.
- Working temperature range at least 10 above ambient temperature to +250°C
- resolution of display for actual values 0.1°C
- resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C
- resolution of display/setting accuracy 0.5°C up to 99.9°C, 1°C from 100°C
- Temperature sensor 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Control of standard components
- Controller digital display of all set parameters, such as temperature, weekdays, time, fan speed, air flap position, programme status and set-up values
- Timer digital 7-day programme timer with real time clock, precise minute setting, for one set value or start of ramp operation
- Controller Electronic microprocessor temperature controller with auto-diagnostic system
- Fan forced air circulation by 2 quiet air turbines, adjustable in 10 % steps for each segment individually
- Fresh air admixture adjustment of pre-heated fresh air admixture by air flap control in 10 % steps for each segment individually
- Vent vent connection with restrictor flap
- Interface Printer parallel printer interface (incl. real time clock with date function) for all PCL3-compatible ink jet printers for GLP-conforming documentation
