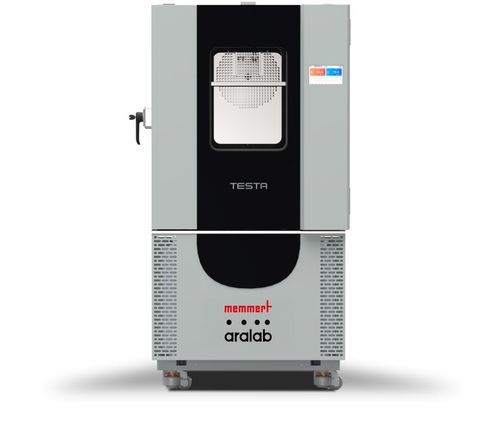

Thermostatic test chamber CT300ECP50-5K

climatichumiditytemperature

Product overviewCompact environmental test chamber for controlled temperature and humidity cycles. Model CT300ECP50-5K by Memmert designed for repeatable climate simulation in materials, electronics and component testing.

Range of functionsAdjustable parameters: temperature; relative humidity. Device functions: climate control regulation; real-time display of process variables; program execution; alarm configuration; Ethernet interface and additional monitoring features. Control unit: touchscreen controller.

TemperatureCooling system: air-cooled hermetic compressor group (low noise, CFC-free) with forced ventilation. Temperature control: stainless steel electric heaters in the air treatment tunnel. Temperature stability (over time): ±0.1 to ±0.3 K. Setting range: -52 to +180 °C. Setting resolution/accuracy: 0.1 °C.

HumiditySetting range: 10 to 98 %rH. Humidification: thermostatic bath with dew point control. Drying: thermostatic bath with dew point control plus additional dry coil. Humidity accuracy: 0.1 %rH.

SafetyTemperature monitoring: safety thermostat with configurable high/low limits and automatic shutdown of thermal systems. Sensors: 1 Pt100 DIN class A; additional movable Pt100 DIN class A sensor for flexible placement; capacitive and psychrometric humidity sensor (ECP). Alarms: high/low humidity and temperature alarms; automatic stop on water failure with indication on controller.

Standard equipment

• Entry port Ø 80 mm, left
• Air-cooled condenser (standard on -50 models)
• Mechanical door locking
• Lockable door with double silicone gaskets and anti-condensation heated frames
• Optional accessories: water conductivity measuring device; documentation package
• Internals: 2 perforated stainless steel shelf(s)

Stainless steel interiorInterior dimensions (w(A) x h(B) x d(C)): 634 x 715 x 600 mm (depth minus 35 mm for fan). Volume: 272 l. Max number of internals: 10. Max loading of chamber: 120 kg. Max loading per internal: 25 kg.

Textured stainless steel casingExternal dimensions (w(D) x h(E) x d(F)): 1009 x 1840 x 1340 mm (depth +56 mm including door handle). Installation: on lockable castors, height adjustable.

Electrical dataSupply: 400 V, 3ph, without N, 16 A, 50 Hz. Approx. nominal power: 11 W.

Ambient conditionsRequired clearances: 1000 mm at rear; 500 mm lateral.

Packing/shipping dataCountry of origin: Portugal. Transport: appliances must be transported upright. Customs tariff number: 8419 8998. Packing dimensions (w x h x d) approx.: 1110 x 2090 x 1520 mm. Net weight approx.: 535 kg. Gross weight with carton approx.: 665 kg.

CertificationsStandard units carry safety approvals and CE marking.

Technical specifications

• Brand: Memmert
• Model: CT300ECP50-5K
• Series: TESTA CT / TESTA TT
• Control unit: touchscreen controller
• Temperature range: -52 to +180 °C
• Temperature resolution/accuracy: 0.1 °C
• Temperature stability: ±0.1 to ±0.3 K
• Humidity range: 10 to 98 %rH
• Humidity accuracy: 0.1 %rH
• Interior volume: 272 l
• Interior dimensions (w x h x d): 634 x 715 x 600 mm
• External dimensions (w x h x d): 1009 x 1840 x 1340 mm
• Electrical supply: 400 V, 3 ph., 16 A, 50 Hz
• Max. chamber loading: 120 kg; max. per internal: 25 kg
• Standard internals: 2 perforated stainless steel shelves (max. 10)
• Interfaces: Ethernet LAN
• Cooling system: air-cooled hermetic compressor unit, CFC-free
• Humidification: thermostatic bath with dew point control; additional dry coil for drying
• Origin: Portugal
• Transport: must be transported upright
