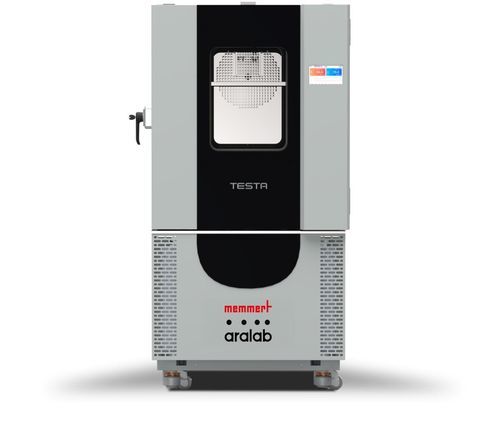

Thermostatic test chamber CT300EC75

climatichumiditytemperature

Overview
Precise environmental simulation for reproducible laboratory and industrial testing. The CT300EC75 from Memmert provides a controlled climate environment with wide temperature and humidity ranges suitable for material tests, component qualification and accelerated aging studies.

Range of functions

• Adjustable parameters: temperature, relative humidity
• Device functions: climate regulation, real-time process display, program execution, alarm configuration
• Control: touch screen controller
• Interfaces: Ethernet LAN for data communication and remote monitoring

Temperature
Setting range: -75 to +180 °C. Cooling: optional or standard water-cooled condensers on -75 °C models. Heating: stainless-steel electric heaters in the air treatment tunnel. Stability: temperature fluctuations typically ±0.1 to ±0.3 K. Setting resolution: 0.1 °C.

Humidity
Setting range: 10 to 98 %rh. Humidification/drying via thermostatic bath with dew point control and additional dry coil for controlled dehumidification. Accuracy: 0.1 %rh.

Safety
Equipped with safety thermostat (over/under temperature limits) with automatic shutdown of thermal systems. Sensors: Pt100 DIN class A sensors (fixed and movable for flexible placement) and capacitive humidity sensor. Automatic stop and controller alarms for water failure, high/low humidity and high/low temperature events.

Standard equipment
Standard features include left entry port Ø 80 mm, water-cooled condenser (standard on -75 and -40 °C models), mechanical door lock, double silicone door gaskets and heated anti-condensation door frames. Optional accessories: water conductivity meter, documentation package.

Stainless steel interior
Interior dimensions (W × H × D): 634 × 715 × 600 mm (depth reduced by 35 mm for fan). Volume: 272 L. Max. number of shelves: 10. Max. chamber load: 120 kg (max. 25 kg per shelf). Standard internals: 2 perforated stainless-steel shelves.

Textured stainless steel casing
External dimensions (W × H × D): 1009 × 1840 × 1340 mm (depth +56 mm for door handle). Installation on lockable castors; height adjustable leveling feet.

Electrical data
Supply: 400 V, 3 ph. w/o N, 16 A, 50 Hz; approx. 11 W power consumption (specify supply requirements during ordering).

Ambient conditions
Required clearances: 1000 mm at rear; 500 mm lateral to neighbouring appliances or walls.

Packing / shipping data
Country of origin: Portugal. Transport: unit must be transported upright. Customs tariff number: 8419 8998. Packaging dimensions (W × H × D): 1110 × 2090 × 1520 mm. Net weight: approx. 540 kg. Gross weight (packed): approx. 665 kg.

Certifications
Standard units are safety-approved and carry the CE marking.

Technical specifications

• Model: CT300EC75
• Brand: Memmert
• Temperature range: -75 to +180 °C
• Humidity range: 10 to 98 %rh
• Temperature accuracy: 0.1 °C; stability ±0.1 to ±0.3 K
• Humidity accuracy: 0.1 %rh
• Interior volume: 272 L
• Interior dimensions (W × H × D): 634 × 715 × 600 mm
• Max. chamber load: 120 kg (25 kg per shelf)
• Standard sensors: Pt100 DIN class A; capacitive humidity sensor
• Controller: touch screen
• Interfaces: Ethernet LAN
• Electrical supply: 400 V, 3 ph., 16 A, 50 Hz
• Country of origin: Portugal
