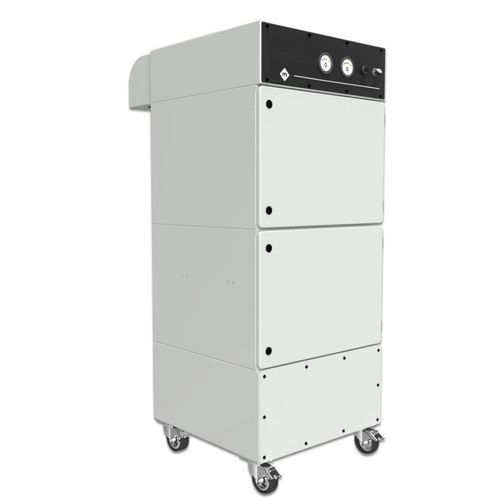

Activated carbon filtration unit

air

Description
Boxair Laser Engraver uses specialized CamCarb activated-carbon filters to adsorb volatile organic compounds (VOCs) and neutralize unpleasant and harmful odours. It removes fine dust, gaseous pollutants and odours to protect the workplace and improve indoor air quality, making it suitable for production areas requiring local air purification.

Ideal solution for:

• Cutting & Engraving (laser processing of plastics, composites, metals and wood)
• Electronics Manufacturing (removal of soldering fumes, dust–vapor mixtures and VOC emissions)
• Chemical & Coating Industry (particles and gases generated during painting, bonding and chemical production)
• Laboratories & Pharmaceuticals (local ventilation for airborne dust, gases or their mixtures)

Construction

• Steel welded construction, powder coated
• Composite rotor with EC motor
• Multi-stage filtration: coarse and fine stages with CamCarb activated carbon filters
• Smooth flow regulation
• Easy access to filters
• Parameter monitoring
• Anodized control panel with manometers
• Industrial switches, IP66
• Remote control output
• Ready for installation or with Oskar 160 extraction arm
• Dimensions: 650 x 730 x 1573 mm

Boxair Laser Engraver parameters
Comfort Smart Drive
Air flow unit: composite impeller with EC motor
Air flow max: 1100 m³/h
Power supply: 1~ 200-277V | 50/60Hz
Power: 0.78 kW
Noise level: 70 dB(A)
Drawing No: 105934

caractéristiques / spécifications techniques

• Air flow max: 1100 m³/h
• Air flow unit: composite impeller with EC motor
• Power supply: 1~ 200-277V | 50/60Hz
• Power: 0.78 kW
• Noise level: 70 dB(A)
• Construction: steel welded, powder coated
• Multi-stage filtration (coarse and fine stages) with CamCarb activated carbon filters
• Composite rotor with EC motor
• Smooth flow regulation
• Easy access to filters
• Parameter monitoring with anodized panel and manometers
• Industrial switches: IP66 class
• Remote control output
• Ready for installation with Oskar 160 extraction arm
• Dimensions: 650 x 730 x 1573 mm
• Drawing No: 105934
