Grinding process downdraft table GD1500

for weldingfor general applicationsfor dust removal

Overview

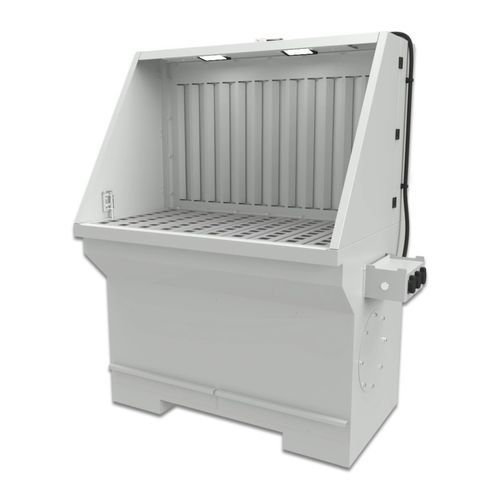

The Grindair grinding table is a compact, industrial workstation engineered for continuous spot grinding with effective dust and spark capture. It is intended for professional workshops and production lines and must be connected to a local ventilation system that discharges air outdoors or to a suitable filtration unit.

Application

• Grinding metal and steel – removes dust and sparks generated during machining
• Machining steel and structural components – suitable for workshop and production tasks
• Use in production plants – integration on process lines where dust is emitted
• Metalworking and welding workshops – local extraction ensures operator safety
• Grinding plastic parts (after consultation) – possible with appropriate precautions
• Educational use – vocational schools and training centers for safe machining practice
• Preparation stations – cleaning and preparing surfaces before welding or painting
• Service and maintenance – spot grinding with local dust extraction
• Machinery, metalworking and automotive plants – equipment for individual work zones

Construction

• Durable welded frame made of closed square profiles for stability and long service life
• Removable worktop for quick adaptation and easy maintenance
• Back wall exhaust with localized suction points for efficient dust capture
• Dust collection drawers (2 × 17 L) for simple removal and emptying during operation
• Foldable side guards to limit dust and spark spread (included on GM1500 model)
• Welded, powder-coated steel structure (work surface excluded)
• Integrated power sockets and lighting available on GM1500LS model to improve workstation ergonomics

Models (without cover)
model w/o cover – equipment – drawing nr
GD1500 – standard – 103645-00
GD1500S – power sockets – 103645-01

Models (with cover)
model w/ cover – equipment – drawing nr
GM1500 – standard – 103632-00
GM1500S – power sockets – 103632-01
GM1500L – light – 103632-10
GM1500LS – power sockets & light – 103632-11

Product cards / Documents
Grindair GD1500 — 103645-00-GD1500-IKW-EN.pdf
Grindair GD1500S — 103645-01-GD1500S-IKW-EN.pdf
Grindair GM1500 — 103632-00-GM1500-IKW-EN.pdf
Grindair GM1500S — 103632-01-GM1500S-IKW-EN.pdf
Grindair GM1500L — 103632-10-GM1500L-IKW-EN.pdf
Grindair GM1500LS — 103632-11-GM1500LS-IKW-EN.pdf

Characteristics / Technical specifications

• Designed for continuous operation in environments with high dust emissions
• Requires connection to a local ventilation system discharging outdoors or to a filtration device
• Durable welded frame of closed square profiles
• Removable worktop for easy adaptation and maintenance
• Back wall exhaust with localized suction points
• Dust collection drawers: 2 × 17 L for easy emptying
• Foldable side guards included on GM1500 model
• Welded, powder-coated steel construction (work surface excluded)
• Integrated power sockets and lighting available on GM1500LS model
• Available models: GD1500, GD1500S, GM1500, GM1500S, GM1500L, GM1500LS (see drawing numbers in models section)
