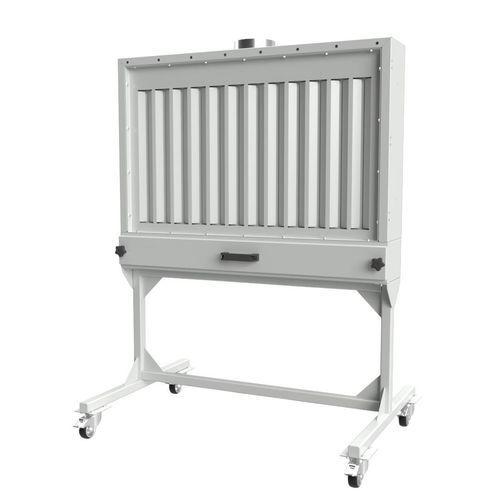

Mobile filter wall AWM-1200

dust

Product overview
The AWM-1200 extraction wall is designed to capture and remove airborne contaminants such as dust and particulates generated by manual grinding with power tools, mechanical brushing, deburring and other mechanical processing operations.

Integrated design
Compact, integrated unit intended for direct connection to a ventilation or filtration system; only a connection to the central extraction is required.

Application

• Hand grinding — manual grinding operations using power tools
• Mechanical brushing — removal of rust, paint coatings or scale from surfaces
• Deburring and edge rounding — removing burrs after cutting or casting to prevent spread of metal filings on the shop floor
• Detail polishing — capturing polishing compound particles and fine dust produced during high-gloss finishing

Construction

• Welded, powder-coated steel construction
• Vertical extraction wall for local capture
• Dust drawer (15 L) — removable for easy emptying without interrupting work
• 160 mm outlet for connection to extraction systems
• Full mobility — 4 transport wheels with brakes for flexible workshop layout

Air Wall Mobile — Key data
Model: AWM-1200
Outlet diameter: 160 mm
Recommended air flow: 1200–1500 m³/h
Drawer capacity: 15 L
Weight: 77.6 kg
Dimensions (W x D x H): 1206 x 855 x 1573 mm
Drawing No: 105358

Technical specifications

• Model: AWM-1200
• Outlet diameter: 160 mm
• Recommended air flow: 1200–1500 m³/h
• Drawer capacity: 15 L
• Weight: 77.6 kg
• Dimensions (W x D x H): 1206 x 855 x 1573 mm
• Drawing number: 105358
• Construction: Welded, powder-coated steel
• Design: Vertical extraction wall for local capture of dust and particles
• Mobility: 4 transport wheels with brakes for dynamic workshop management
• Connection: Designed for direct connection to ventilation or filtration systems
