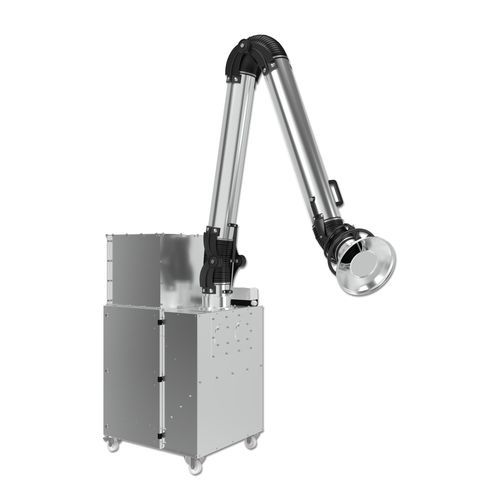

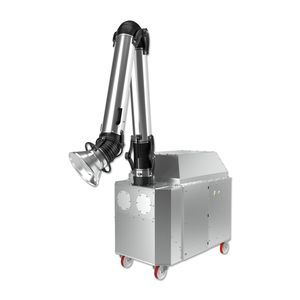

Mobile fume extractor Stainlair M1000

laboratoryindustrialcartridge

Overview The Stainlair M1000 is a mobile stainless steel industrial filter designed to remove dust and contaminants generated during industrial processes. The unit is intended for applications requiring hygiene control, corrosion resistance and simplified cleaning. It includes an integrated filter regeneration system for continuous operation in demanding environments.

Mobile stainless steel filter for controlled environments The stainless steel housing makes the Stainlair M1000 suitable where equipment is exposed to moisture, cleaning agents or frequent washdowns. It is suitable for food and pharmaceutical production, laboratories, cleanrooms and dedicated production stations. The mobile design enables repositioning between workstations and the stainless steel extraction arm allows capture of contaminants at source.

High filtration efficiency and automatic cleaning The Stainlair M1000 is fitted with a cartridge filter element providing up to 99% efficiency for particles ≥ 0.5 µm. The automatic filter regeneration system enables cleaning without interrupting operation, extending filter life and reducing operating costs. The unit offers intuitive controls and quick access to service components for routine maintenance.

Application

• food and pharmaceutical industries
• laboratories and cleanrooms
• processes requiring strict hygiene control
• workstations requiring local air filtration
• production plants with increased sanitary requirements

Why choose Stainlair M1000?

• mobile industrial filter with a capacity of up to 1000 m³/h
• stainless steel housing for corrosion resistance
• cartridge filter with high particle capture
• automatic filter cartridge regeneration
• easy cleaning and simplified maintenance access
• suitable for environments with strict hygiene requirements

Stainlair M1000 parameters Performance Classic Drive
air flow unit: aluminum impeller with induction motor
air flow max: 1000 m³/h
power supply: 3~400V | 50Hz
power: 1,1 kW
noise level: 72 dB(A)
Drawing No: 105279

Filters

• main cartridge filter

Recommended stainless steel arms

• 103462 OSS-1620P
• 103464 OSS-1630P

Caractéristiques / spécifications techniques

• Model: Stainlair M1000
• Construction: stainless steel housing
• Maximum airflow: 1000 m³/h
• Filter type: main cartridge filter, cartridge element with up to 99% efficiency for particles ≥ 0.5 µm
• Filter regeneration: integrated automatic regeneration system allowing cleaning without stopping operation
• Motor/drive: aluminum impeller with induction motor
• Power supply: 3~400V | 50Hz
• Power consumption: 1.1 kW
• Noise level: 72 dB(A)
• Mobility: mobile design for repositioning between workstations
• Recommended extraction arms: 103462 OSS-1620P, 103464 OSS-1630P
• Drawing number / product code referenced on page: 105279
