Mobile fume extractor Stainlair M2002

weldinglaboratoryindustrial

Overview

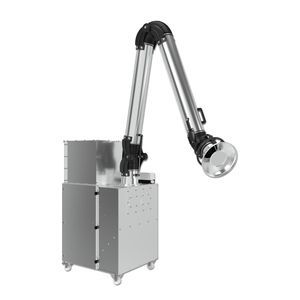

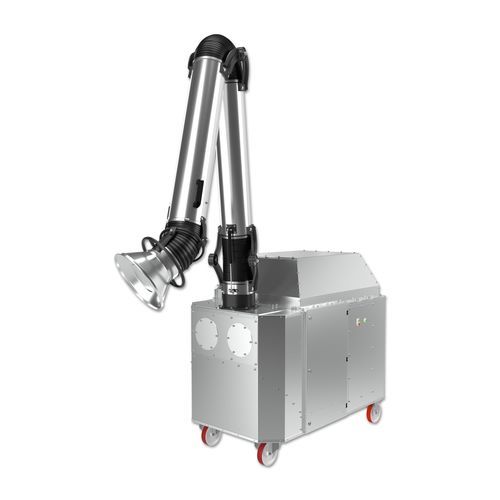

The Stainlair M2002 is a mobile stainless-steel industrial filter engineered to remove dust, fumes and airborne contaminants generated during production. It is intended for sites requiring local high-efficiency filtration and resistance to humid or corrosive environments, such as food and pharmaceutical production, laboratories and technical service areas.

Construction and mobility
The unit features a stainless-steel housing for corrosion and moisture resistance and simple cleaning. Its mobile, ergonomic design with castors and handling points enables relocation between workstations to provide targeted air filtration where needed.

Filtration performance
The Stainlair M2002 uses a main cartridge filter to capture particles of various sizes. An automatic filter cartridge regeneration system extends filter life and reduces maintenance interruptions, supporting continuous operation in production environments.

Applications

• Food and pharmaceutical industries
• Laboratories and research facilities
• Processes requiring dust and contamination control
• Workstations for machining, welding or painting
• Sites needing high-efficiency mobile air filtration

Key features

• Mobile, corrosion-resistant stainless-steel industrial filter
• Main cartridge filter as primary filtration element
• Automatic filter cartridge regeneration
• Aluminum impeller with induction motor for the air flow unit
• Max air flow 2000 m³/h, power 2.2 kW, 3~400V | 50Hz
• Noise level approximately 75 dB(A)
• Easy access for maintenance

Filters

• Main cartridge filter

Recommended stainless steel arms

• 103472 OSS-2030P

Stainlair M2002 parameters
PCD Performance Classic Drive
Air flow unit: aluminum impeller with induction motor
Air flow max: 2000 m³/h
Power supply: 3~400V | 50Hz
Power: 2.2 kW
Noise level: 75 dB(A)
Drawing No: 102817-PCD-00

Technical specifications

• Stainless-steel housing — corrosion and moisture resistant, easy to clean
• Mobile, ergonomic design for relocation between workstations
• Main cartridge filter as primary filtration element
• Automatic filter regeneration system to extend filter life and reduce downtime
• Air flow unit: aluminum impeller with induction motor
• Maximum air flow: 2000 m³/h
• Power supply: 3~400V | 50Hz
• Power: 2.2 kW
• Noise level: 75 dB(A)
• Drawing No: 102817-PCD-00
