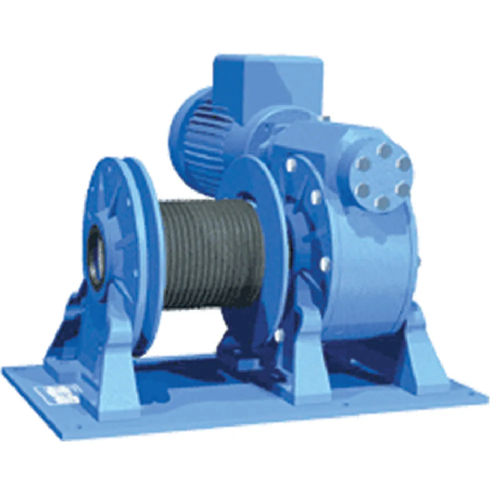

Electric winch EN EMCE

wire ropeliftingworm gear

A range of electric self braking worm gear winches, developed conform to the European norms for lifting winches, specially to P-82-NEN 3508-K3 and DIN 15020-1AM with long life service. The self braking worm gearbox is combined with an automatic fail-safe motor brake for precise load control. On types EN 580 to EN1700 a grooved drum is fitted as standard according to the CE norm. A grooved drum ensures long service life for the cable. Standard features: - Self braking worm gear transission. - IP 54 aluminium braked motor 400 VAC / 3 phase / 50 Hz. - Grooved steel drum (not grooved on EN 200, EN 450) with cable fixing point at flange. - Single drum support (EN 200, EN 450). - Two drum supports (all other models). - Double layer 2 component conservation, colour RAL 5010.
