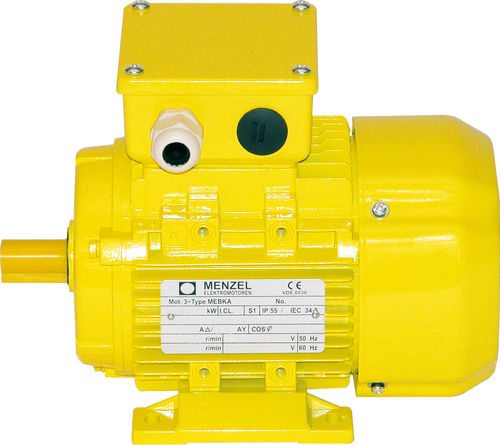

Asynchronous motor IE2

AC400 Vsquirrel cage

Standard three-phase asynchronous motors with suirrel-cage rotor of the MENZEL series: - MEBK - cast iron - MEBKA - aluminium casting IE2 – High Efficiency (comparable to EFF1) Voltage and frequency acc. IEC 38: 230 V, 400 V, 690 V 220-240 V/ 380-420 V, 50 Hz 220-280 V/ 380-480 V, 60 Hz or 380-420 V/ 660-720 V, 50 Hz 380-480 V/ 660-830 V, 60 Hz Mounting: IM B3 for horizontal installation IM B35 flange and feet mounting IM B5 / B14 for vertical flange installation Cooling: The motors are equipped with axial-flow-fans in plastic or aluminium, which cool the motor independently of the direc-tion of rotation (IC 01041 according to IEC 34 - Part 6). The fan covers of the motors are generally made from sheet steel. Degrees of protection: IP 55 in accordance with DIN IEC34 (part 5) MENZEL Elektromotoren GmbH is specialized in electric drive solutions. With more than 85 years in the business, we manufacture and supply industrial motors of even the highest power output. Among our wide product range, you will find electric motors of any type and size. Our portfolio includes squirrel cage motors, and slip ring motors as well as direct current motors from standard low voltage motors to individually designed single pieces of up to 20 MW. Qualified engineering, highly skilled staff, and modern facilities with up-to-date testing equipment form the basis for the reliable work that countless customers around the world have come to appreciate. Menzel Elektromotoren Berlin is certified according to DIN EN ISO 9001
