Pt100 temperature probe 115

Pt1000type J thermocoupletype K thermocouple

Product

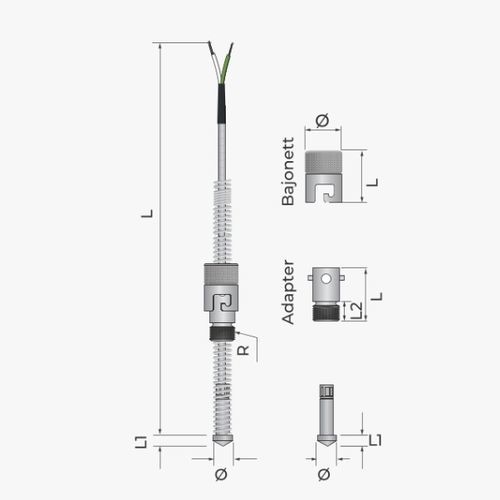

Straight thermoprobe for industrial temperature measurement. Compatible with RTD sensors (PT100 / PT1000) and thermocouples; fitted with a BTR bayonet coupling for quick installation and an adjustable insertion length for process adaptation.

Features

• Sensor types: PT100 / PT1000 (RTD) according to IEC 751
• Thermocouples: types J, K, S, T, etc. according to EN 60584-2
• Cable options: compensation and extension cables with insulation choices including Silicone, Fiberglass, MFA, Kapton, etc.
• Sheath materials: standard AISI-316 stainless steel; alternatives available (PTFE, titanium)
• Connection: BTR bayonet coupling for rapid mounting and removal
• Adjustable insertion length (mechanical adjustment)
• Operating temperature range: –196 ºC to 1100 ºC (model dependent)

Applications

• Industrial process temperature measurement and control (furnaces, ovens, reactors, pipelines)
• Installation where quick bayonet fixation and adjustable immersion depth are required
• High- and low-temperature applications including cryogenic and high-temperature processes

Technical specifications

• Reference: REF. 115
• Supported sensors: PT100, PT1000 (RTD); thermocouples types J, K, S, T, etc.
• Standards: IEC 751 (RTD), EN 60584-2 (thermocouples)
• Cable insulation options: Silicone, Fiberglass, MFA, Kapton, etc.
• Sheath: AISI-316 stainless steel standard; options: PTFE, titanium
• Connection: BTR bayonet coupling
• Insertion length: adjustable (mechanical)
• Operating temperature: –196 ºC to 1100 ºC (depends on model and sensor/protection combination)
