Humidity data-logger SRD-99

flowpressurepH

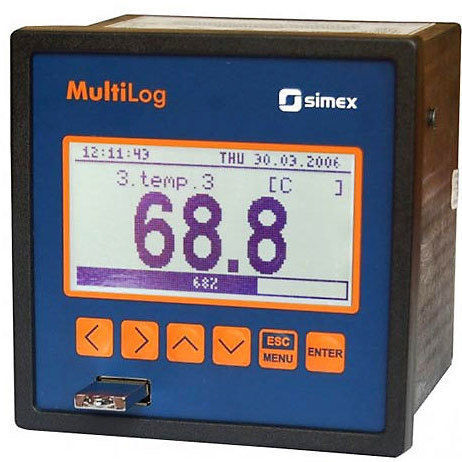

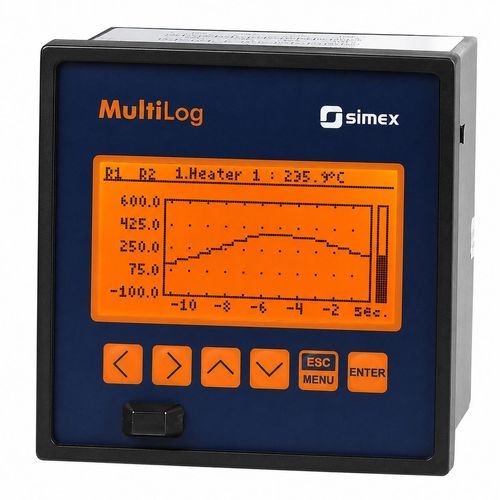

The MultiLog SRD-99 is a graphic data recorder and display designed for the measurement, recording and monitoring of process variables. It displays current values and provides graphical representation of the evolution of recorded parameters.
It can be equipped with 1, 4 or 8 universal inputs, compatible with RTD temperature sensors and thermocouples, as well as analogue current and voltage signals. This allows different types of sensors to be connected to a single device.
It also features a digital input for recording control, 2 electronic relays, internal memory, RS-485 Modbus RTU communication, and USB connections for data transfer, configuration and external storage.

• Main features
• 1, 4 or 8 universal inputs
• Inputs for RTD, thermocouples, mA, V and mV
• 2 NO electronic relay outputs, max. 24 V AC / 35 V DC, 200 mA
• Digital/pulse input for recording control
• 128 × 64 pixel backlit graphic LCD
• White or amber backlight available
• 8 MB internal memory
• Configurable recording period from 1 second to 60 minutes
• RS-485 / Modbus RTU communication
• USB PC port for direct computer connection
• Front or rear USB Host port for data storage and configuration transfer
• Panel mounting
• Dimensions: 96 × 96 × 100 mm

• Inputs and measuring ranges:
• RTD:

• - Pt100: −100…+600 °C
• - Pt500: −100…+600 °C
• - Pt1000: −100…+600 °C

• Thermocouples

• Type K: −200…+1370 °C
• Type J: −210…+1200 °C
• Type T: −200…+400 °C
• Type N: −200…+1300 °C
• Type S: −50…+1768 °C
• Type R: −50…+1768 °C
• Type B: +250…+1820 °C
• Type E: −200…+1000 °C

• Analogue signals:

• Current: 0/4…20 mA
• Voltage: 0/1…5 V and 0/2…10 V
• Millivolts: 0…60 / 75 / 100 / 150
• mV

• Communication and recording:

• RS-485 / Modbus RTU
• Transmission speed: 1,200…115,200 bit/s
• Formats: 8N1 / 8N2
• USB PC
• USB Host
• Internal memory: 8 MB
• Recording intervals: 1, 2, 5, 10, 15, 20 and 30 s; 1, 2, 5, 10, 15, 20, 30 and 60 min

• Power supply:

• 85…260 V AC/DC
• 16…35 V AC / 19…50 V DC
• 10…13 V AC / 11…16 V DC

• Operating conditions and construction:

• Operating temperature: depending on version, 0…+50 °C or −20…+50 °C

• Protection rating:

• IP40 with front USB Host
• IP54 with front USB and transparent lockable STD-99/141 door
• IP65 with rear USB Host
• Optional integrated frame for panel cut-out sealing
• Housing material: NORYL-GFN2S E1
• Mounting: panel
• Dimensions: 96 × 96 × 100 mm
