Universal signal converter CV/Oanalogtransmitterfor thermocouples
Add to favorites
Compare this product
Characteristics
- Signal type
- universal, analog
- Associated function
- transmitter
- Other characteristics
- for thermocouples, for RTD sensors
Description
Product overview

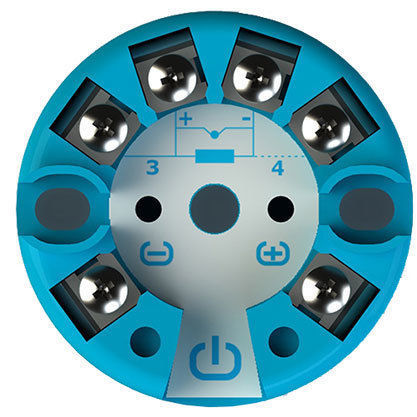

Designed for mounting in the connection heads of temperature probes to convert sensor signals to an industry-standard 4-20 mA loop output.
Features
Technical specifications
Designed for mounting in the connection heads of temperature probes to convert sensor signals to an industry-standard 4-20 mA loop output.
Features
- Input: depending on model — RTD (thermoresistance), thermocouple (TC) or universal input.
- Thermoresistance minimum span: 20 Ω.
- Thermocouple minimum span: 10 mV.
- Zero and span adjustment: multi-turn potentiometers for field calibration.
- Output: 4–20 mA, 2-wire loop-powered; signal inversion configurable via software.
- Power supply: 24 V DC (loop-powered).
Technical specifications
- Mounting location: connection heads of temperature probes.
- Available input types: RTD, thermocouple, or universal input depending on model variant.
- Minimum input spans: RTD ≥ 20 Ω; TC ≥ 10 mV.
- Calibration: zero and span adjustable with multi-turn potentiometers.
- Output signal: 4–20 mA, 2-wire configuration; inversion via software option.
- Power: 24 V DC loop-powered.
- Model family: Mod. CV/O.
