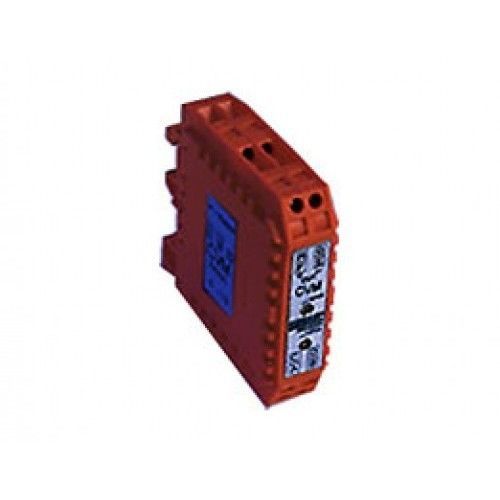

Universal signal isolator-converter CV/Manalogfor thermocouplesfor RTD sensors
Add to favorites
Compare this product
Characteristics
- Signal type
- universal, analog
- Other characteristics
- for thermocouples, for RTD sensors, DIN rail
Description
Overview Designed for DIN-rail mounting. Range configurable via USB. Suitable for RTD (thermoresistance), thermocouple (TC) or universal inputs.
Product SIGNAL CONVERTERS MOD. CV/M.
Features
Additional information Configurable range via USB; suitable for compact DIN-rail signal conversion in process monitoring and control applications.
Product SIGNAL CONVERTERS MOD. CV/M.
Features
- Dimensions: 17 x 63 x 63 mm (depth).
- Input options: RTD, TC or universal (depending on model).
- RTD minimum span: 20 Ω.
- Thermocouple minimum span: 10 mV.
- Zero and span adjustment: via multi-turn potentiometers.
- Output: 4/20 mA, 2-wire; signal inversion possible via software.
- Power supply: 24 V DC supplied via loop.
Additional information Configurable range via USB; suitable for compact DIN-rail signal conversion in process monitoring and control applications.
