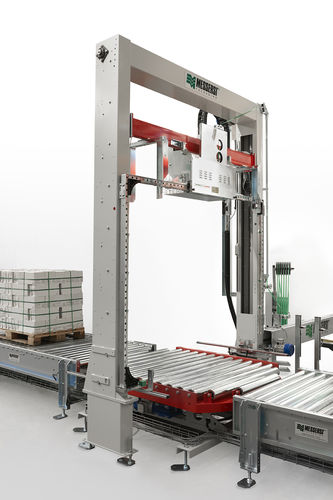

Automatic strapping machine VR70
palletvertical

automatic strapping machine
automatic strapping machine
Add to favorites
Compare this product


Characteristics

Type
automatic
Product applications
pallet
Other characteristics
vertical
Strap width

Min.: 8 mm (0.3 in)

Max.: 19 mm (0.7 in)

Height

Min.: 1,000 mm (39.4 in)

Max.: 1,200 mm (47.2 in)

Width

Min.: 800 mm (31.5 in)

Max.: 1,800 mm (70.9 in)

Description

Automatic vertical strapping machine The VR70 automatic, strapping machine is equipped with strapping head MS500 - Messersì patent. Conceived for the vertical strapping of palletized products of any nature and size, it is fully customizable. Description It can be customized according to the sizes of the packages and of the logistic requirements, and can be inserted in conveyoring lines with automatic strapping programs. The electrical panel is equipped with PLC; whatever product type, the constant and programmable tensioning allows optimal strapping operations. The arch is made with high quality components which guarantee great perfomances. The huge reliability of this machine and the high standard of components reduces to minimum the maintenance. Technical data: Type of strapping band: Polypropylene (PP) and polyester (PET) Suitable strapping band: Width from 8 to 19 mm, Thickness from 0,50 to 1,27 mm Strapping band tensioning: Up to 700 kg Strapping band junction: By welding or vibration Feeding and recovery speed: 2.4 to 5.5 m/sec Tensioning speed: 0.25 m/sec Time of welding cycle: From 1.2 up to 3 seconds according to tensioning Power supply voltage: 220/400 V Installed power: 3Kw Arch: Standard sizes 1100 x 800 mm; tailor made arches on demand Coilholder: Inside diameter 390/405; width 150/160 mm Optional Sword Side movement
