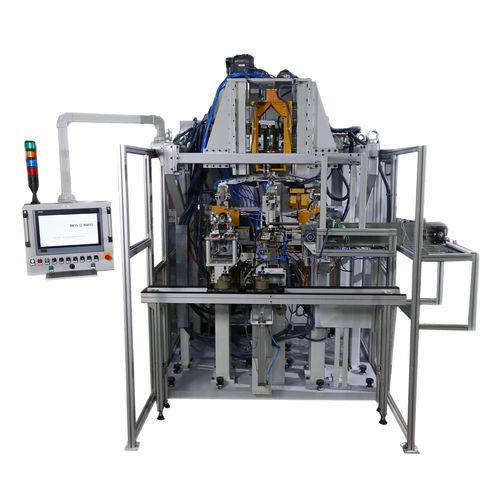

Horizontal balancing machine ORCservo-drivenelectric armaturefor electric motor rotors
Add to favorites
Compare this product
Characteristics
- Orientation
- horizontal
- Operation
- servo-driven
- Applications
- for electric motor rotors, electric armature
- Other characteristics
- automatic
- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 1,000 rpm
(6,283 rad.min-1)- Weight on rotor
5 kg
(11 lb)
Description
SYM ORC-S is an automatic multi-station balancing machine especially designed for balancing operations of armatures, electric motor rotors etc. It works as an automatic balancing machine in measuring and correcting the unbalance of the armatures inside the production line.
Stations
Station 1: Loading and Unloading
Station 2: Balancing
Station 3: Drilling in Two Planes
Station 4: Balance Check Measurement
Balancing Unit
Main Motor: Servo Motor
Balance Measurement Speed: 1.000 – 1.500 rpm/min (Varies according to Rotor Weight)
Cycle Time: 15 sec. (Varies according to the number of holes)
Electricity: 380V ± 10 % 50Hz ± 3 %
