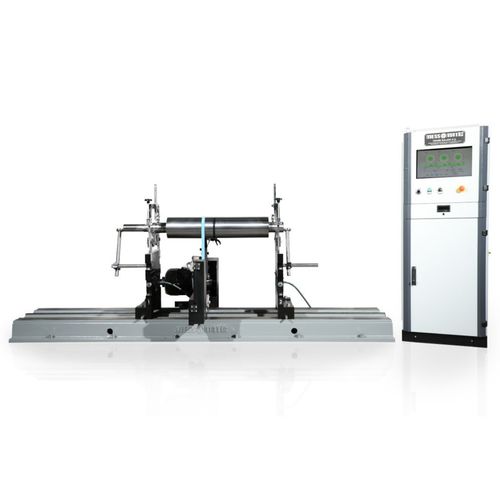

Horizontal balancing machine SYM-5000

staticmanualbelt-driven

SYM 5000 series horizontal balancing machines are innovatively designed for balancing operations of various rotors between 2 – 1.100 kg, with cardan or belt drive system. By help of 2 universal rigid type pedestals having vibration sensors, bearings, and protection cover, cylindrical rotors having their own shaft journals and disc shaped rotors on balancing arbors can be balanced with high balancing accuracy. These machines are used for balancing in horizontal axis of fan, pump shaft, alternator, bobbin, train wheel, cylinder, shaft, mill, roller, rotors of electric motor, turbine, agricultural and textile machines etc. Optionally, horizontal or vertical axis working manual drilling unit can be mounted on the system and all over the balancing machine can be surrounded by switch controlled protection cage according to CE regulations. With the user-friendly software, the operation is very easy Main Features -Manual loading & unloading -Automatic unbalance measurement with high accuracy -Manual unbalance correction (if required) Optional Accessories -Unbalance correction with horizontal drilling unit -Unbalance correction with vertical drilling unit -Unbalance correction with spot welding unit -Switch controlled protection cage according to CE regulations -Additional bench
