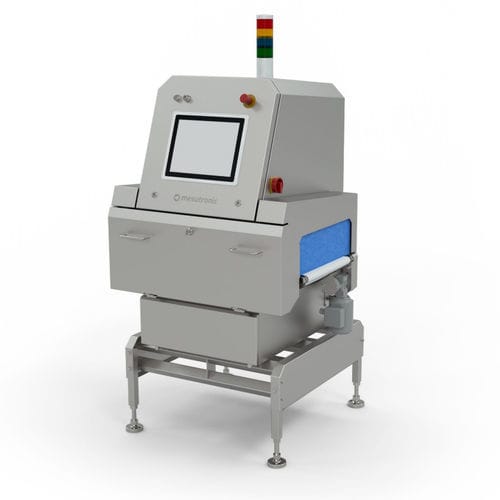

X-ray inspection system easySCOPE MT DS

with energy dispersion X-rayautomatedquality

Product overview
X-ray inspection system with photon-counting detector and Dual-Energy technology, designed for inspection of demanding food products. The easySCOPE MT DS detects foreign bodies (e.g. bone fragments in chicken breast, plastics in wholegrain bread) and inspects product widths up to 380 mm for contaminants and quality defects.

Your benefits

• Reliable foreign body detection and quality control Dual-Energy photon-counting detection combined with standard algorithms provides high accuracy on dense or heterogeneous products and at high throughput.
• Compact installation and intuitive operation Space-saving design enables retrofitting in confined areas; user guidance and workflows are optimised for different operator groups.
• Hygiene-compliant, low-maintenance design Routine maintenance (belt changes, protective curtain replacement) is quick and straightforward, supporting hygiene requirements.

Solutions and integration
Customer-specific options (special infeed belts, ejectors, combinations with metal detectors) simplify integration into existing lines and reduce commissioning effort. Interfaces include analogue signals, various fieldbus systems and Ethernet; OPC UA is supported for digital networking. Basic functions can be extended with mesuLINK (networking), mesuREMOTE (remote maintenance) and mesuEXPORT (reporting).

Technical specifications

• System type: X-ray inspection system with photon-counting detector
• Technology: Dual-Energy
• Max. inspectable product width: 380 mm
• Applications: Foreign body detection (bone, plastics), quality defect detection in food products
• Standard features: Detection and quality algorithms, password-protected user management, automatic test prompts, reporting options
• Integration: Analogue outputs, various fieldbus interfaces, Ethernet; OPC UA supported
• Maintenance: Easy belt change and protective curtain replacement
• Options: Special infeed belts, ejectors, combinations with metal detectors; mesuLINK, mesuREMOTE, mesuEXPORT
• Manufacturer: Mesutronic (development and production processes embedded in ISO 9001)
