Woven mesh METART-WW04C3115

rigidwirestainless steel

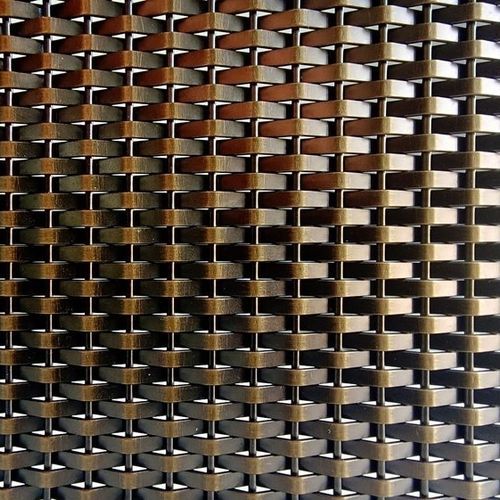

Solid Architectural Metal Mesh Panels are commonly used in elevator interior cladding projects, particularly those requiring a smooth, sheet-like appearance with no openings, creating a decorative metal surface. METART-WW04C3115 is an opaque, decorative woven wire mesh panel designed primarily for interior cladding. This product is crafted from tightly woven 3x1mm flat stainless steel wire strips and nominal 1.5mm straightened wire rods (with an actual measurement of 1.45mm). The mesh is woven in a typical way that both sides feature the same pattern, making it an excellent choice for commercial cladding applications, such as bespoke elevator interiors and lobby wall decorations. Explanation of the Pattern Code: "WW04C": Represents our woven wire 04 series, made with pre-crimped shaped wire. "31": Denotes the flat metal strips' 3mm width and 1mm thickness. "15": Refers to the nominal 1.5mm stainless steel wire rods, with an actual measurement of 1.45mm. Flat Metal Strip ( Width x Thickness) 3x1mm Wire Rod Diameter Nominal 1.5mm (actual 1.45mm) Wire Rod Pitch 7mm Opening Size 0mm The overall thickness of the mesh 3.4mm Opening Area 0% Privacy Rate 100% Weight: 9.5kg/Square Meter
