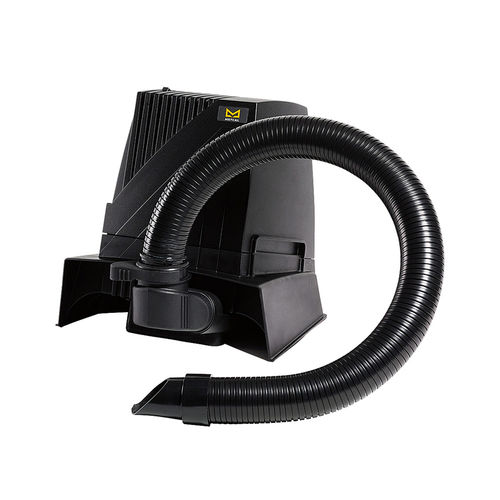

Benchtop fume extractor BVX-101

solderingcompactdust

The BVX-101 is a single user, PRE-HEPA-GAS volume extraction system designed to be used directly on the workbench. The unit is designed with an innovative adapter which allows the user to choose between plenum or arm extraction options. Flow Rate (With Filter): - 85 m3/h (50 cfm) Static Pressure (suction force): - 1250 Pa (5" WC) HEPA Efficiency: - 99.97 % at 0.3 micron Noise Level: - < 55 dBA Dimensions (W x D x H): - 300 x 230 x 290 mm (11.8" x 9.1" x 11.4") Weight : - 9 kg ( 20 lb) Certification/Marking: - UL, CSA, CE Power Cord Length: - 183 cm, 18/3 SJT Warranty: - 1 Year Portable, single user fume extraction system Low noise unit No external ducting or compressor needed Unit easily fits on any bench-top or under-bench 12” wide (300mm) plenum - Innovative adapter transforms the plenum into an arm Powerful 85m3/hr-airflow rate Immediate extraction of fumes, particles and vapors Two filtration configurations: heavy soldering and light dust or light duty organic solvent and adhesive applications Bi-coloured LED light indicates when the filters are blocked and require replacing Base Unit Set of filters BVX-ADT arm to plenum adaptor BVX Arm (760mm, 29.50")
