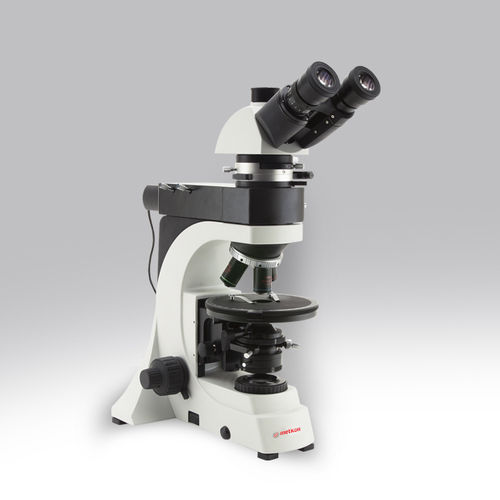

Polarizing Laboratory Microscope
Head: Trinocular, 30° inclined, 360° rotating
Bertrand lens: Swing-out type; centrable (for Conoscopy/Orthoscopy)
Polarizing attachment: Blue filter, 0°-90° rotating analyzing filter,
l slip (first class red), 1/4 l slip, quartz wedge
Nosepiece: 4-positions with centering mechanism for all objectives
Objectives: For transmitted and incident polarized light
5x/0.15, 10x/0.25, 20x/0.40, 50x/0.70
Magnifications: 50x, 100x, 200x, 500x
Focusing system: Coaxial coarse and fine
Stage: 160mm diameter; 360° rotating with stop knob and 0.1° Vernier
Condenser: 0,9 N.A., with iris diaphragm, focusable and centrable.
With rotating polarizing filter (swing-out type)
Illumination: Transmitted light: XLED system.
Incident light: XLED system polarizing attachment with built-in
polarizer filter, aperture diaphragm and field diaphragm.
Complete with dust cover
