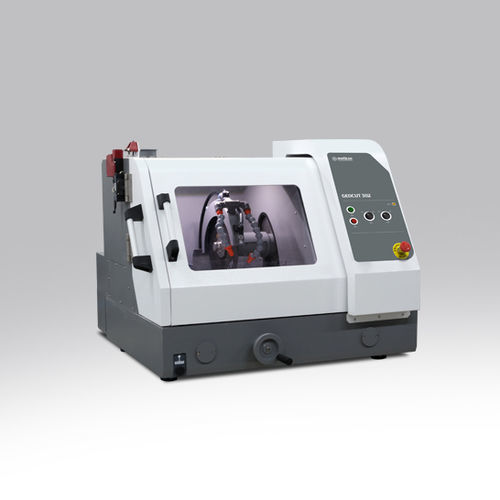

Rotary blade cutting machine GEOCUT 302
for industrial applicationscompact3-axis

rotary blade cutting machine
rotary blade cutting machine
Add to favorites
Compare this product


Characteristics

Technology
rotary blade
Applications
for industrial applications
Configuration
compact, 3-axis
Other characteristics
mechanical, manual, sectioning
X travel

95 mm (4 in)

Y travel

220 mm (9 in)

Laser power

4,000 W

Description

Geological Cutting Machine for sectioning of rock, ceramics, minerals, glass, concrete etc., with Z-axis cutting wheel positioning and table-feed cutting system, manual positioning of the specimen in X and Y axis, X-Y table bed and cross feed table for cutting of plane parallel sections, mechanical display of cutting thickness, twin T-slotted clamping table made of stainless steel, bottom part as rugged alloy base casting, cutting capacity up to 110/90 mm solid stock, for diamond wheels up to ø300/250mm, 6.4 HP compact cutting motor, electronic brake system, extraordinary access for easy handling with sliding door and side openings, interlocking safety switch for sliding door, ability to connect directly city water or recirculating coolant tank. Ready for operation. Without clamping devices, without recirculating cooling unit. Order No : 14 04 Model : GEOCUT 302 Max. Wheel Diameter : Ø300 mm Max. Cutting Capacity, Ø : Ø110 mm Max. Cutting Capacity, HxD : #70x200 mm Z-Axis Travel, (mm) : 125 Y-Axis Travel, (mm) : 220 X-Axis Travel, (mm) : 95 T-Table Dimension, (mm) : (395+95)x275 T-Slot Dimension, (mm) : 12 mm Cutting Motor Power (S1) : 4 kW Wheel Speed, RPM : 2800 Chop Cutting, Z- Axis : Manual Table Feed Cutting, Y-Axis : Manual Parallel Cutting, X-Axis : Manual Size WxDxH, (cm) : 90x94x66.5 Weight : 250 kgs
