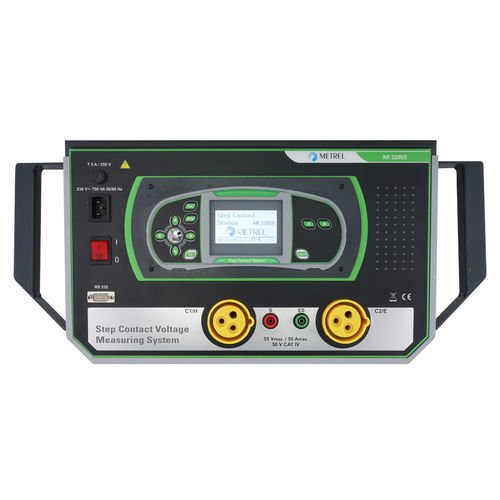

Step and contact voltage measurement device MI 3295

The MI 3295 Step Contact Voltage Measuring System is a voltage measuring system intended for testing and verification of protective earthing of power stations, substation and other power systems. MEASURING FUNCTIONS • Step voltage • Contact voltage • Specific earth resistance • Earth resistance • Potential • Leakage current KEY FEATURES • Accurate: high accuracy of the measurements due to a high current of up to 50 A and effective suppression of noise • Noise immunity: excellent immunity even against changing earth currents • Autonomous Step Voltage meter: no need for long potential leads; a few meters can be used simultaneously • Safe: high safety due to low output voltage (55 V) • Low weight: the weight of the Station is 29.5 kg only • Memory: up to 1000 test results can be saved into the 3-level internal memory of the system • PC SW Metrel ES Manager or HVLink PRO included in the standard set enables downloading and analysis of results and printing of test reports
