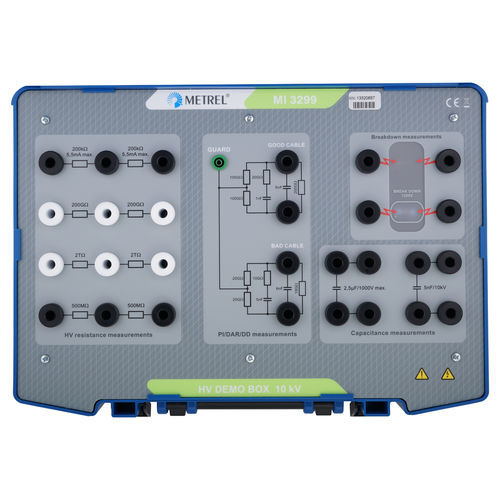

Electrical installation demonstration board MI 3299 HV

The MI 3299 High voltage Demonstration Box 10 kV has been developed for demonstration purposes at high voltage insulation diagnostics. KEY FEATURES • 10 kV rated resistors with very low voltage coefficient • Resistive decade with 200 kΩ, 500 MΩ, 200 GΩ and 2 TΩ resistors • HV capacitors in 2.5 μF and 5 nF range • Built-in spark gap and gas discharge tube • Demonstration of insulation breakdown in gases is possible • Two models of insulation material (good and bad cables) enable the demonstration of real insulation behaviour under high DC voltage • Demonstration box is put in the strong rugged case with handle for comfortable carrying
