Storage and dispensing cabinet HotBlox Xpress

warmingbenchtopdoor

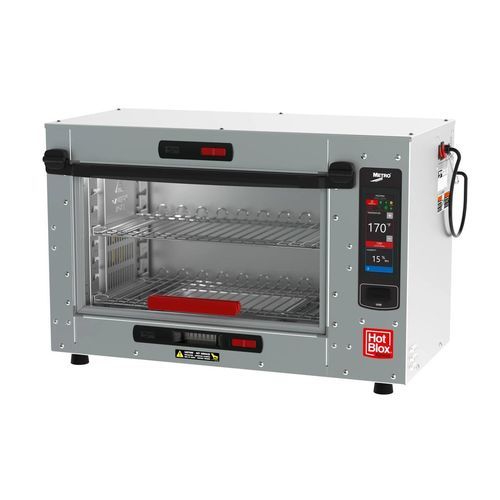

Product overview Metro HotBlox Xpress Quick‑Pick countertop holding cabinets deliver compact, high‑efficiency hot food holding for high‑volume, fast‑paced kitchens such as quick‑serve restaurants and convenience stores. Suitable for hot food display and self‑serve applications, the cabinet supports both moist and crispy holding using hybrid convection‑radiant heating. Convection venting routes humidity out a rear vent while the door vent intakes dry replacement air to help maintain crispness. A radiant floor element allows placing a pan of water to add moisture when needed. Shallow depth saves counter space and simplifies order assembly.

Key features

• Compact countertop design for high‑volume, fast‑paced operations
• Hybrid convection‑radiant heating for moist or crispy holding
• Convection venting with rear vent and door vent to manage humidity
• Radiant floor element enables adding a water pan to increase moisture
• Shallow depth for more usable counter space
• Quick‑flip doors and adjustable shelves (flat or angled) for fast picking
• Integrated LED lighting to improve product visibility
• Control options: Touchscreen (humidity display, menu presets, programmable timers, USB HACCP data logging) or Simple (electro‑mechanical thermostat + digital thermometer)
• Standard S4: two nickel chrome‑plated wire shelves
• Optional factory‑installed pan slides or additional shelves to increase pan capacity
• Stackable when used with stacking kit

Technical specifications

• Product name: Metro HotBlox Xpress Quick‑Pick Countertop Holding Cabinet, Small
• Model / SKU: HBCS4‑B
• Denomination (model name): HotBlox Xpress
• UPC / EAN: 041105038161
• Cabinet type: Countertop holding cabinet
• Standard shelving: Two nickel chrome‑plated wire shelves
• Pan capacity (standard): up to two 13 in x 18 in sheet pans, two 12 in x 20 in x 2.5 in pans (1/1 GN Pan 65 mm), or six 1/3 pans
• Optional: Additional shelves or four pairs of pan slides (factory‑installed)
• Dimensions (Small): 32.3 in (821 mm) W x 16.9 in (429 mm) D x 21.2 in (539 mm) H
• Pass‑thru depth (models with pass‑thru door): 17.8 in (452 mm) D
• Electrical (standard): 120V, 60Hz, 875W, NEMA 5‑15P, 6 ft (183 cm) cord
• Electrical (optional): 220‑240V, 50/60Hz, 735‑875W, NEMA 6‑15P, 6 ft cord
• Heating system: Hybrid convection‑radiant technology (convection venting + radiant floor element)
• Controls: Touchscreen (humidity display, presets, programmable timers, USB HACCP data logging) or Simple (electro‑mechanical thermostat + digital thermometer)
• Lighting: Integrated LED
• Stacking: Stackable with stacking kit accessory
• Warranty: 1 year (limited warranty against defects in material and workmanship)
• Note: Metro heated cabinets are for hot food holding applications only.
