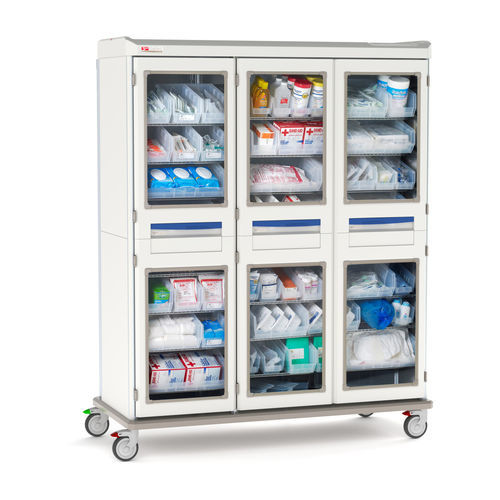

Storage cabinet Starsys XD

storage and dispensingfloor-mounteddoor

Product Overview
Extra Deep (XD) configuration increases internal capacity to store longer items and bulk supplies. Repositionable polymer shelves adjust from horizontal to +/-20° to enable supply containment or improved visibility and access. Preconfigured units ship with eight (8) XD shelves installed at a 20° up angle. Available with Clear or Solid doors and with non-locking, key locking or electronic PIN locking (key override) options.

Key Features

• Extra Deep (XD) shelving for increased capacity and storage of longer items
• Repositionable shelves adjustable from horizontal to +/-20° for containment or visibility
• Preconfigured units include eight (8) XD shelves installed at a 20° up angle
• Door options: Clear (visual access) or Solid
• Locking options: Non-Locking, Key Locking, Electronic PIN Lock (with key override)
• Total load capacity: 600 lb (approx. 272 kg)
• Constructed of polymer for easy cleaning and compatibility with healthcare environments

Available Options / Configurations

• Door style: Clear or Solid
• Locking style: Non-Locking, Key Locking, Electronic PIN Lock (with key override)
• Units sold as preconfigured models or with selectable options

Usage & Applications

• Designed for medical and healthcare facilities, as well as commercial and foodservice settings requiring protected, organized supply storage
• Suitable where longer items or bulk supplies require deeper shelf capacity

Technical specifications

• Product Name: Metro Starsys XD Extra Deep Mobile Supply Cabinet, Triple Wide
• Part Number: SXRT-MXD
• Width: 64 in (1626 mm)
• Depth: 28 in (711 mm)
• Height: 79 in (2007 mm)
• Number of Shelves: 8 (installed at 20° up angle on preconfigured units)
• Load Capacity: 600 lb (272 kg) total
• Material: Polymer
• Color: Taupe
• Door Options: Clear or Solid
• Locking Options: Non-Locking, Key Locking, Electronic PIN Lock (with key override)
• Shelf Angle Adjustment: Horizontal to +/-20°
