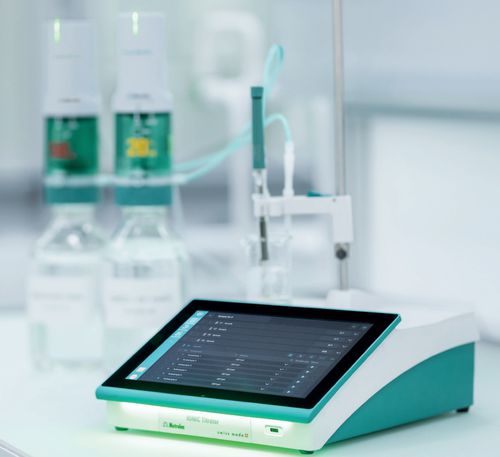

Volumetric titrator IONIC Titrator

potentiometerautomatedKarl Fischer

Overview
The IONIC Titrator is a compact stand-alone titrator for potentiometric and volumetric Karl Fischer analyses. It features a tablet-like 10-inch touchscreen, local storage for thousands of determinations and direct cloud connectivity via built-in mobile communication module, LAN or Wi‑Fi. The instrument supports regulatory workflows (e.g. FDA 21 CFR Part 11, GLP, GMP).

Key benefits

• Expandable: up to 3 measuring interfaces and up to 4 Dosino Modules; option to run two titrations in parallel.
• High dosing resolution: Dosino Module control up to 250,000 pulses for precise volumetric dosing.
• Cloud-ready data handling: direct upload to Metrohm Data Service and remote access for traceability.
• Large internal database and flexible report output to compact or network printers.

Operation & ergonomics

• Tablet-like touch interface for intuitive operation: scroll sample lists, swipe to result details and zoom titration curves.
• Compact footprint and onboard storage eliminate the need for a PC for routine data backup.
• Report printing, user management and method templates accessible from the device.

Systems & variants

• IONIC Titrator with 1 magnetic stirrer — 2.1040.0120
• IONIC Titrator with 2 magnetic stirrers — 2.1040.0220
• IONIC Titrator Salt — 2.1040.2010
• IONIC Titrator Oil — 2.1040.3010
• IONIC Titrator Acid/Base — 2.1040.4010
• IONIC Titrator Redox — 2.1040.5010
• IONIC Titrator KF — 2.1040.6010
• Dosino Module options (cable 0.75 m / 2 m) — 2.1042.0010 / 2.1042.0020

Technical specifications

• Type: compact stand-alone potentiometric and volumetric Karl Fischer titrator.
• User interface: tablet-like 10-inch touchscreen.
• Measuring inputs: up to 3 interfaces (analog or digital).
• Burets/dosing: support for up to 4 Dosino Modules (Dosino resolution up to 250,000 pulses).
• Parallel operation: up to 2 titrations in parallel (depending on configuration).
• Connectivity: built-in mobile communication module, LAN, Wi‑Fi; integration with Metrohm Data Service.
• Regulatory support: features to assist compliance with FDA 21 CFR Part 11, EudraLex Vol.4 Annex 11, GLP, GMP.
• Automation: compatible with IONIC Titration Autosampler for up to 24 samples unattended.
• Storage: local storage for thousands of determinations; report output to compact or network printers.

Documentation
Downloadable product brochure and technical specification sheet available (e.g. IONIC Titrator brochure and technical datasheet).
