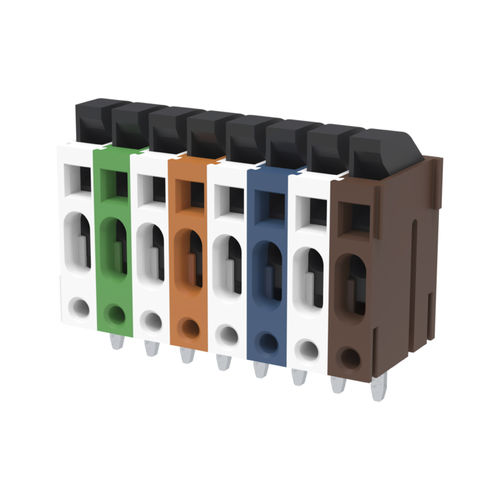

Printed circuit board terminal block IT02308HMNU001 ETHERNETIECEthernetmultipole
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Other characteristics
- IEC, Ethernet
- Number of poles
- multipole
- Cross-section
Max.: 0.34 mm²
(0 in²)Min.: 0.2 mm²
(0 in²)
Description
・ethernet-compatible insulation displacement connector, solderable
・suitable for up to 10 GBit Ethernet (IEEE 802.3an)
・compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
・suitable for Power over Ethernet/Remote Powering (PoE, PoE plus, UPoE and 4PPoE)
・centerline 3.50 mm, direction of connection 90°
・modular
・color coding for conductor colors according to T568 (white/green/white/orange/white/blue/white/brown)
