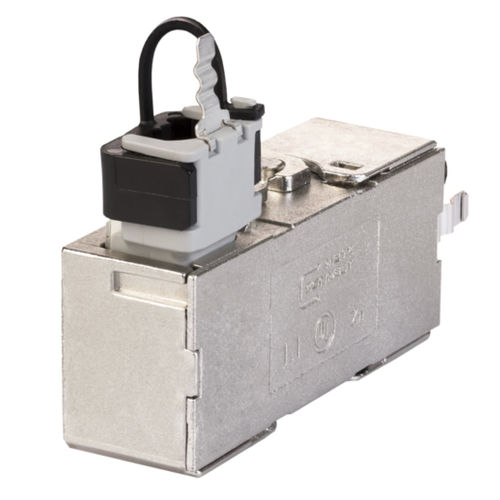

Data connector 130863-05-E

die-cast zinc

・Cable connector for field assembly Class EA for 8 wire cables (optionally also for 4 wire cables) ・Cable feed angled 90° and 270° ・to connect / extend / repair / relocate copper data cables up to Cat.7A ・in combination with Cat. 6A or higher copper cables, class EA up to 500 MHz according to ・ISO/IEC 11801, DIN EN 50173 is fulfilled ・suitable for 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP ・Compact design, length 46.6 mm x width 14.7 mm x height 31.8 mm ・solid, one-piece and reusable housing refined with zinc die-casting ・simplest confection - mounting without special tools, strain relief via snap-in clip directly on the loading piece ・intelligent cable management in stuffer cap - also suitable for heavily twisted cables ・shield connection and strain relief integrated ・conductor assignment to T568A and T568B is directly printed on the stuffer cap ・Simple extension or relocation of existing infrastructure C6A modul through reusable loading pieces ・easy connection of data cables AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC) ・solid copper wire diameter 0.409 to 0.643 mm ・stranded copper wire diameter 0.483 to 0.762 mm ・suitable for cables with an overall diameter of 5.5 to 10 mm ・fully shielded version according to DIN EN 50173
