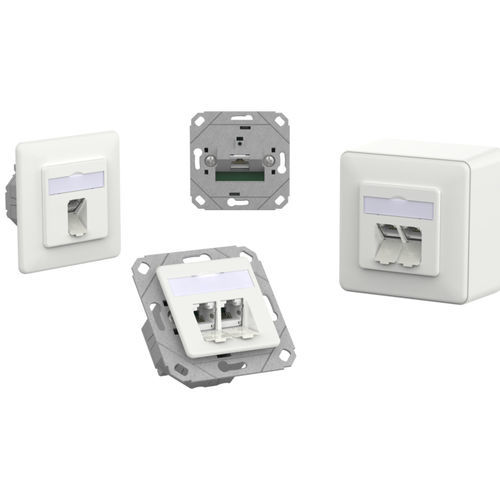

Data connector E-DAT C6A IDC

RJ45plasticdie-cast zinc

The RJ45 data wall outlet from METZ CONNECT impresses with maximum versatility and technical precision. It supports all common network standards - from classic telephony to high-performance 10-Gigabit Ethernet applications. Thanks to Power over Ethernet (PoE) up to 90 watts, IP-based devices such as cameras, access points, or VoIP phones can also be powered via the same cable. Made of high-quality die-cast zinc, the outlet not only offers exceptional durability but also optimal EMC protection. Thanks to the patented, optimized cable entry, the data outlet can be flexibly integrated into almost any installation scenario, and the proven IDC connection technology enables quick, tool-free, and error-free installation - ideal for professional users.Variants, mounting type: AP, UP, UPk, UP0Variants, number of ports: 1, 2Overview of variants:DescriptionMounting styleNumber of portsFlush-mounted / cavity wall cups suitableColorPart numberE-DAT C6A IDC 1 Port AP pure whiteAP1on mugpure white - RAL 9010130D370002-IE-DAT C6A IDC 1 Port UP pure whiteUP1yespure white - RAL 9010130D371002-IE-DAT C6A IDC 1 Port UPk pure whiteUPk1yespure white - RAL 9010130D371102-IE-DAT C6A IDC 2 Port AP pure whiteAP2on mugpure white - RAL 9010130D380002-IE-DAT C6A IDC 2 Port UP pure whiteUP2yespure white - RAL 9010130D381002-IE-DAT C6A IDC 2 Port UPk pure whiteUPk2yespure white - RAL 9010130D381102-IE-DAT C6A IDC 1 Port AP traffic whiteAP1on mugtraffic white - RAL 9016130D370027-IE-DAT C6A IDC 1 Port UP traffic whiteUP1yestraffic white - RAL 9016130D371027-IE-DAT C6A IDC 1 Port UPk traffic whiteUPk1yestraffic white - RAL 9016130D371127-IE-DAT C6A IDC 2 Port AP traffic whiteAP2on mugtraffic white - RAL 9016130D380027-IE-DAT C6A IDC 2 Port UP traffic whiteUP2yestraffic white - RAL 9016130D381027-IE-DAT C6A IDC 2 Port UPk traffic whiteUPk2yestraffic white - RAL 9016130D381127-IE-DAT C6A IDC 1 Port UP0 metallikeUP01yesmetallike130D371200-IE-DAT C6A IDC 2 Port UP0 metallikeUP02yesmetallike130D381200-IGHMT type approvalTechnical characteristics / specifications:Supports all common network standards, including 10-Gigabit EthernetPower over Ethernet (PoE) up to 90WHigh-quality die-cast zinc housing for durability and EMC protectionPatented, optimized cable entry for flexible installationTool-free, error-free IDC connection technologyAvailable in multiple mounting types (AP, UP, UPk, UP0) and colors (pure white RAL 9010, traffic white RAL 9016, metallike)Available in 1-port and 2-port variants
