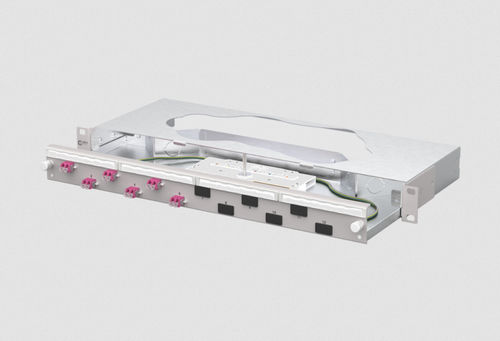

OM4 patch panel OpDAT slide² K

19"LC type1U

19-inch, 1U patch panel with pull-out drawer - 30% shorter than OpDAT slide2 - Equipped with 6xLC-D couplers and 12xLC OM4 pigtails - Offset coupling arrangement for easy handling - Pigtails inserted and set down in standard splice cassette with crimp splice holders - Pigtail visually inspected and inserted into couplers - Color coding according to IEC 60304 - Tool-free metal bayonet catch for locking the drawer - Drawer can be tilted and completely removed for easier installation (pull-out stop) - Depth adjustable by 30 mm - Front panel with labelling field - Front panel powder-coated in gray RAL 7035 - Several possibilities for inclined cable entry on the back: 4xM20 (for splice variant), 4x Prefab installation cut-outs (for Prefab variant) Technical Specifications / Features: - Type: Fiber optic patch panel, splice variant - Model: OpDAT slide2 K - Coupler type: 6xLC-D - Pigtails: 12xLC OM4 - Color: Gray (RAL 7035) - Size: 19-inch, 1U - Material: Metal, powder-coated - Drawer: Pull-out, tiltable, removable, tool-free locking - Depth adjustment: 30 mm - Labeling: Field on front panel - Cable entry: 4xM20 or 4x prefab cut-outs (depending on variant) - Color coding: IEC 60304
