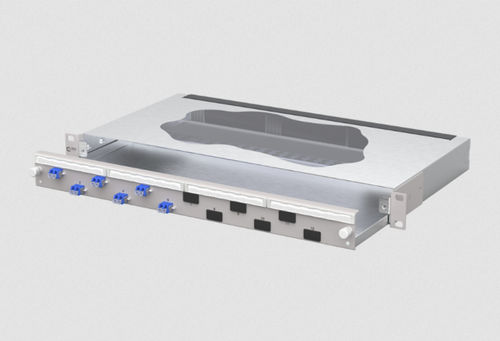

19" patch panel OpDAT slide2 BO

1Ufiber opticsLC type

19-inch, 1U patch panel with pull-out drawer - Equipped with 6xLC-D couplers - Offset coupling arrangement for easy handling - Tool-free metal bayonet catch for locking the drawer - Drawer can be tilted and completely removed for easier installation (pull-out stop) - Depth adjustable by 30 mm - Front panel with labelling field - Front panel powder-coated in gray RAL 7035 - Cable guide through brush strip - Double strain relief by fixing with two cable ties - Prepared for the installation of pre-assembled cables Technical Specifications / Features - Product type: Fiber optic patch panel - Model: OpDAT slide² BO patch panel Prefab - Connector type: 6x LC-Duplex (LC-D) couplers - Color: Gray (RAL 7035) - Mounting: 19-inch rack, 1U height - Drawer: Pull-out, tiltable, and removable - Depth adjustment: 30 mm - Front panel: Labelling field, powder-coated - Cable management: Brush strip, double strain relief with cable ties - Installation: Tool-free bayonet catch, prepared for pre-assembled cables
