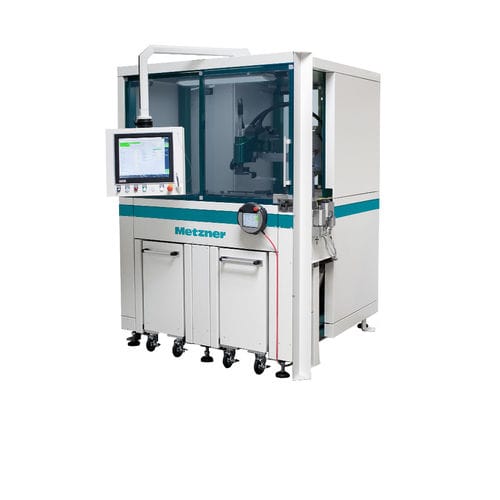

Robotic handling cell RPA 60-LT

loadingfor quality control

The »Metzner RPA 60-LT« is a powerful robot press automation with an excellent storage system for high performance in the handling of press parts of carbide. With a storage capacity of up to 60 sintered plates offers the "Metzner RPA 60-LI" outstanding opportunities for continuous industrial use in the manufacture of cutting inserts and other stampings. All sintered plates are fed by four trolleys à 15 plates of the machine. The intelligent system handling of the "RPA 60-LT" provides an uninterrupted loading of pressed parts: During the first sintered plate is filled with a linear robot with multi-function hook, put the handling system, a second blank plate. As soon as the first plate is filled, starts the loading of the second. Meanwhile, the handling system performs the sintered plate loaded back into the trolley. The automated system thus operates according to the Kanban principle, which ensures that the press can be operated continuously during the pallet change. Optionally, the "RPA 60-LT" and all popular choices for quality control, such as deburring or weighing. Here for example is weight control for a user-definable number of parts. Parts that do not meet the specified weight tolerance will be rejected automatically by means of a conveyor belt. Key Features • Trolleys for sinter tray storing • Uninterrupted press operation during sinter tray change • Large sinter tray storage capacity • Integrated sinter tray handling-system • Kanban-system for sinter tray exchange • Sinter tray transport trolleys for optimized production logistics • Multifunctional gripper • Intuitive operator interface incl. software for free creation of part placing patterns
