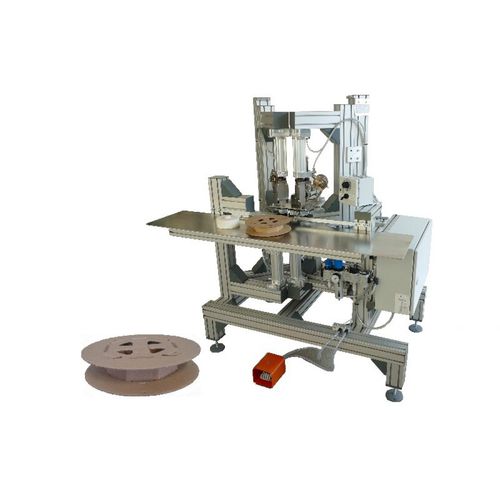

Pneumatic stapling machine SGR 4 / TEL

with 4 heads

SGR 4 / TEL Stapling Device with 4 stapling heads. For stapling round blanks of corrugated cardboard The 3-piece, prefabricated round blank made of corrugated cardboard is inserted into the stapling device. The foot valve activates each 2 staples from the bottom and top. Then the round blank is turned over in order to staple the opposite side. Each 4 cardboard flaps at the top and bottom are stapled into the cardboard body so that the 3-piece round blank forms a unit. • Centering of the cardboard spools by stop dogs • Execution of the stapling process with all 4 stapling heads simultaneously or individually. SGR 4 / TEL Stapling Device (SGR/C 13-30/4X/TEL) • With 4 stapling heads C 13 - 30/80. • 2 at bottom, 2 at top, left and right version. • Loading capacity 5000 staples on a coil. • Reloading time of one staple coil in less than one minute. • Frame with pedestal. • Equipped with 20 liter pressure tank. • Compensation of air fluctuations. • Working height 900 mm. • Output: approx. 1- 2 pcs per minute incl.handling. See also pneumatic stapling head > C 13 See also Automatic stapling machines > C06
