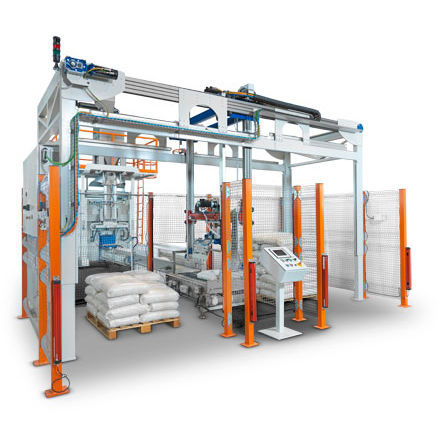

Layer palletizer MF PCA 700 / 700

bagfor the cement industryautomatic

Robotic, Cartesian palletizer, for low and medium production, based on a 4 column support structure with the possibility of palletizing on the ground or on service rollers. It is characterises by its extremely compact size that enables insertion in spaces where other palletizers cannot fit; just think it’s just over 3 metres high !! Strong and simple to use. The gripper pliers moves along a beam that lifts and lowers on two vertical arms in structural aluminium, which can in turn slide longitudinally forward and back along a strong, tubular steel structure that composes the main frame. The use of brushless motors, also on the smallest of palletizers manufactured by MF TECNO, enables higher precision when positioning the packages. The machine is prepared for use on various types of gripping modules (possibility of automatic fast coupling and release). The electronics used enable manufacturing of any type of layer, the easy to use management software also enables less expert operators to quickly change the work program and even change the palletization pattern to adapt it to various needs.
