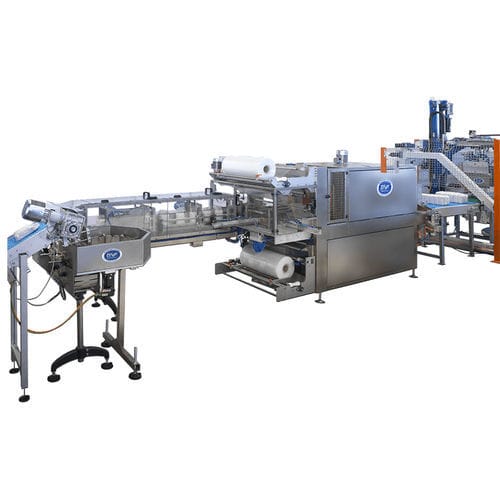

Automatic shrink wrapping machine MF-V

for brickPLCpackage

The MF-V series shrink wrapper, available in versions 80 and 120, is a continuous movement packaging machine designed for packaging square bottom bags, bricks and cases arriving vertical on the infeed belt, using heat-shrinkable film. The MF BUNDLEE-V shrink wrapper is essentially made up from 3 modules: Row formation unit: the module is composed of a bags reception carousel followed by a sorting device to distribute the packages on 2 rows and, finally, a pneumatic pusher for transfer of the pairs formed onto the bundle pre-forming belt Sealing unit of the heat-shrinkable film around the bundle: the ends of the film, unwound by two reels, are sealed via a sealing bar Heat-shrinking tunnel: final module of the plant where the possibility of adjusting the speed and temperature of heat-shrinking inside the tunnel from the panel, allows a perfect bundle to be obtained. Thanks to advanced electronics and strong frame, the MF BUNDLEE-V is a simple, reliable and economic solution for a wide variety of products. MAIN FEATURES: - Stainless steel structure - Main drives via brushless motors - Teflon-coated impulse sealing bar - Conveyor belts electronic speed adjustment - Motorised reel unwinder - Electronic adjustment of heat-shrinking temperature and speed - Product conveyed into the tunnel on steel mesh - Electric plant managed by integrated PLC - Armoured shaped tubular heating elements - Self-cooled electric and electronic components - Machine mounted on height-adjustable feet - Pneumatically driven sealing bar. - Materials: PPE - EEC compliant material.
