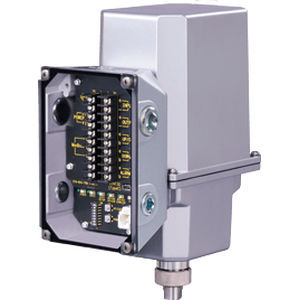

Electric actuator MSP10

linear24 VIP66

Stepping motor drive High-speed operation control with 1/1000 resolution Auto-setup function makes the initial adjustment work simple and quick. 4-20 mA output plus Modbus-RTU communication for control and maintenance Thrust buffering by built-in coil spring at both ends of stroke Terminal box with transparent cover equipped with operating status indicator LEDs Operator access to the terminal box only Stepping motor drive High-speed operation control with 1/1000 resolution 4-20 mA output plus Modbus-RTU communication for control and maintenance Terminal box with transparent cover equipped with operating status indicator LEDs Operator access to the terminal box only Auto-Setup Function The time and effort required to adjust the valve opening is greatly reduced. Those for maintenance work can be also saved. Modbus Communication Directly connectable to PLC/PC network Actuators' operation data can be accumulated while in the normal operation. Stepping Motor Compact package and high torque thanks to the stepping motor drive 1/1000 resolution High-speed operation balanced with high torque feature Easy wiring LEDs for operating status indication can be checked through the rugged, transparent polycarbonate cover. Operation can be checked at a glance LEDs for operating status indicator can be checked through the rugged, transparent polycarbonate cover. Easy parameter setting Various parameters can be set with DIP switches or by using the Programming Unit (Model: PU-2A) connected to the modular jack in the terminal box, without opening the cover of the main actuator body. In addition, parameters can also be set from a PC using the configurator software (Model: STCFG).*1
