Abrasive material recovery system

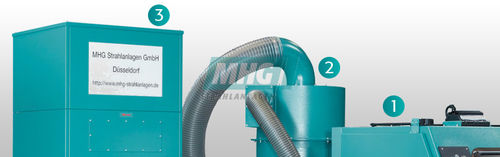

As a provider of blasting technology, MHG equips its systems by standard with a special blast media reclaim system. Integrated between the blast cabinet and exhaust air filter, the system reduces the blast media consumption and at the same time maintains a consistently high blast media quality. IN this manner, MHG blasting systems guarantee optimal efficiency and reproducible surface quality. Three times more efficient: the system components 1. The blast cabinet The design of the working environment has a crucial influence on the performance of the employees. Therefore all MHG blasting systems are sound-insulated and guarantee a clear view of the workpiece to be processed thanks to a clever extraction system and a dust-free environment. 2. The reclaim system Unlike conventional blasting systems, MHG blasting systems use a cyclone separator to separate permanently usable blast media from dust, impurities and used blast media. In the process, both time and money are saved, because only usable blast media remains in circulation. 3. The exhaust air filtration The dedusting takes place by means of overdimensioned cartridge filters with automatic cleaning of the filter cartridges. The filter material can be individually selected in order to also filter out problematic dusts with a separation degree of up to 99 %, and of course satisfy DIN EN 60335-69 Annex AA of the applicable dust classification.
