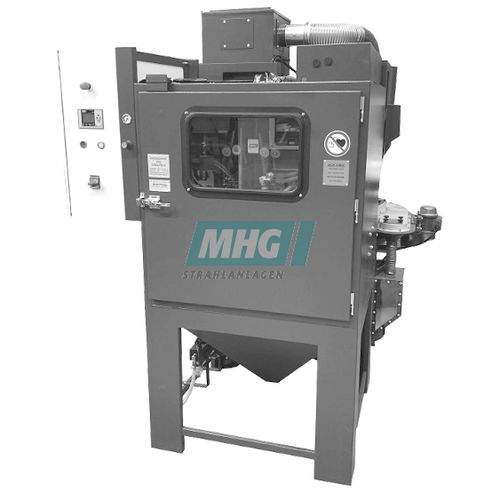

Additive manufacturing blast machine Rapid 3-D

automatic

ADVANTAGES OF THIS BLASTING SYSTEM: * Fully automatic blasting of bulk goods * Large drum for series parts, with adjustable inclination angle. * In addition to the recovery system, built-in vibrating sieve unit for the finest screening of no longer usable blasting media in ceramic and glass bead blasting. WORKING SPACE 1000 x 1000 x 1000 mm (W x D x H) BLASTROOM Dustproof vacuum cabin in stable sheet steel construction DOORS Two side doors, dust-tight closing, double-walled, sound-absorbing foamed, lockable, with electrical switch-off protection BLASTING MATERIAL RECOVERY Via coordinated MHG recovery system / Vibration sieve unit for the finest separation of the usable material from dust and ground abrasive SERVICE ON / OFF switch for suction and lighting, pressure regulator and manometer Blasting time processing drum in minutes Drum run-on time in seconds Speed ​​regulation of the drum approx. 1.8 - 7.5 U / min VISORS Safety glass, 500 x 320 mm, interchangeable without special tool BEAM LIGHTING Very bright illumination by LED lighting unit MHG BLASTING GUNS High-performance blast gun system MHG, with optimum efficiency, available with nozzles in different sizes and materials WORKPIECE BLOW-OFF NOZZLE For cleaning the blasted workpieces and the blasting chamber via ionized air
